NB41
Durable 8" Tablet with IP65, 5 ft Drop Protection and Hot-Swap Battery.
-

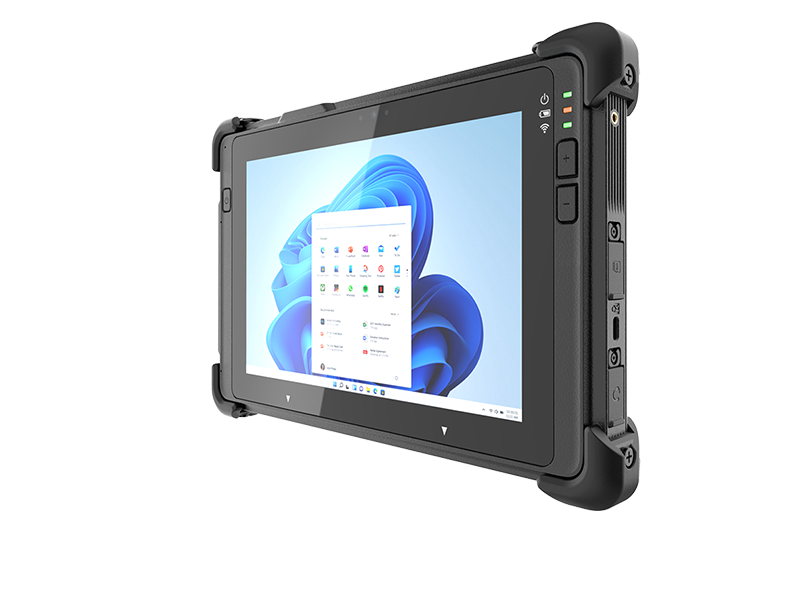

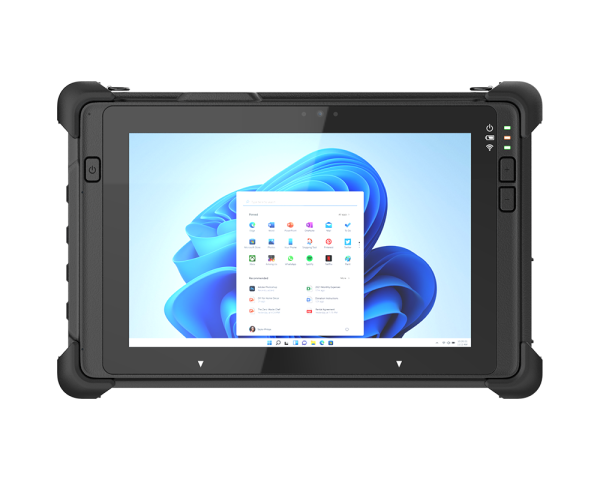

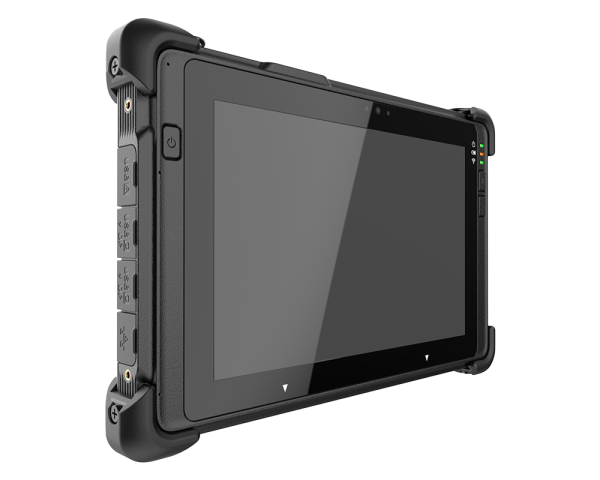

NB41 8" Rugged Tablet
- MIL-STD 810G tested, 5ft. / 1.5m drop proof, IP65, one-meter tumble test.
- Support Type-C Alt mode video output.
- Firmware TPM 2.0. Optional hardware TPM2.0.
- Gb Ethernet port with PXE support for reliable communication & maintenance.
- Sunlight readable High brightness 650nits LCD display.
- Support Wireless WIFI 6E.
- Optional vehicle dock, office dock, battery charger.
- Optional digitizer, stylus, briefcase handle, hand strap, NFC.
- Optional 1D/2D barcode readers for data acquisition.
Features
-
-

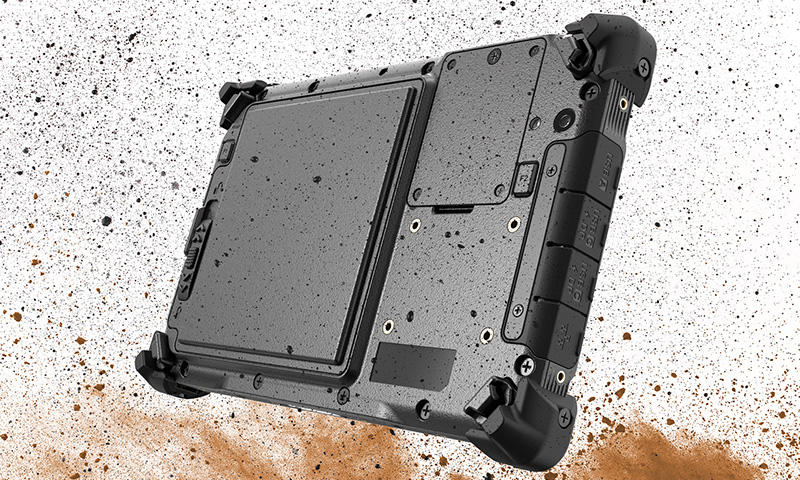

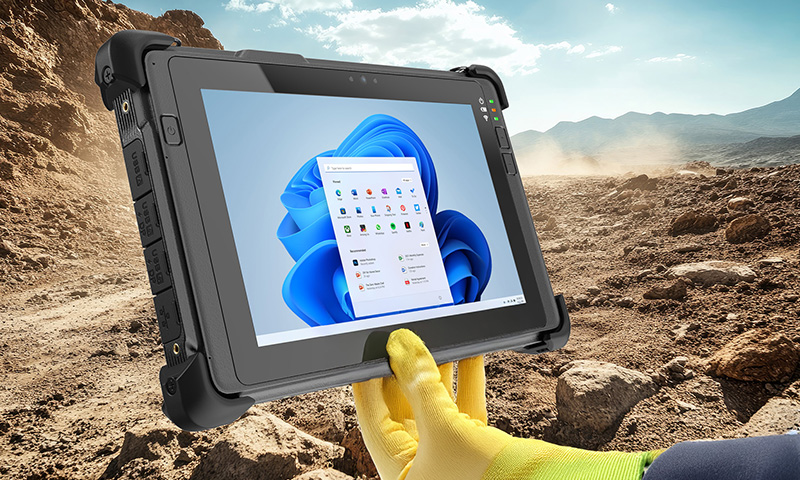

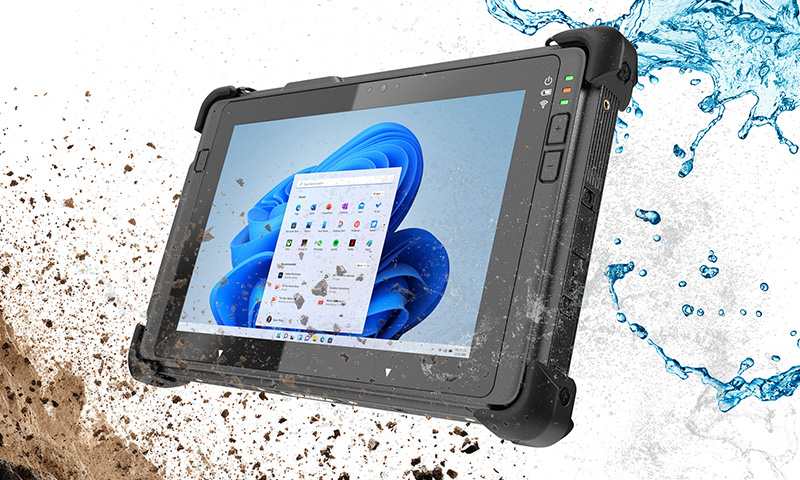

Field-Ready Rugged Design
NB41 is built to handle demanding work environments with MIL-STD-810G durability, 5 ft / 1.5 m drop protection, IP65 sealing and a 1 m tumble test. Steel ball impact validation and wide operating temperatures ensure reliable performance in the field, in vehicles and in industrial facilities.
-
-

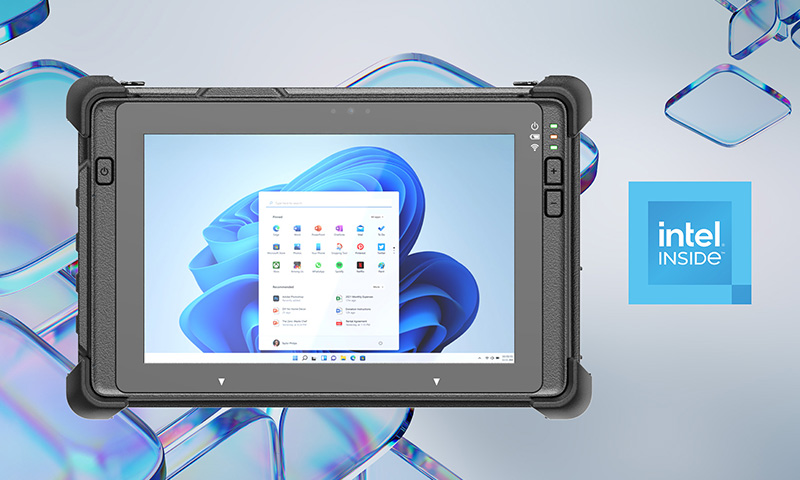

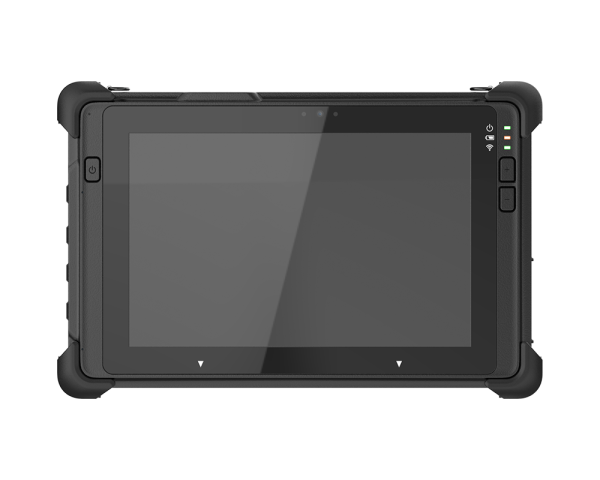

8" Sunlight-Readable Touch Display
The 1200×1920 IPS panel delivers 650 nits of brightness for superior outdoor visibility. The 10-point multi-touch screen supports glove mode and wet-touch, allowing accurate interaction in rain, humidity or harsh conditions.
-
-
Efficient Performance with Fanless Reliability
Powered by Intel® Alder Lake-N N100/N200 processors and LPDDR5/LPDDR5X memory, NB41 provides responsive performance for data acquisition, POS, inspection and mobility workflows. Its sealed, fanless design enhances durability in dusty or vibration-heavy environments.
-
-
Complete Connectivity for Professional Workflows
NB41 includes USB Type-A, dual USB Type-C with PD, Gigabit RJ45, micro SDXC and a 19-pin docking connector. Wi-Fi 6E, Bluetooth® 5.3 and GNSS (GPS/GLONASS/Galileo) enable stable wireless communication and precise positioning across warehouses, vehicles and outdoor sites.
-
-

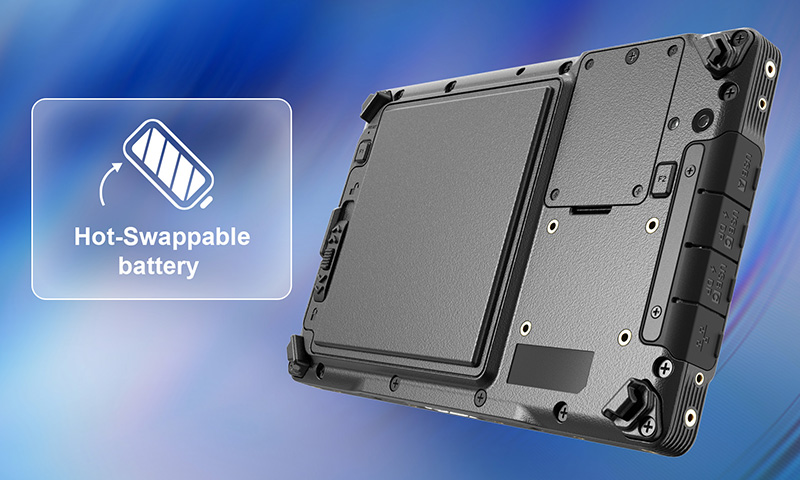

Hot-Swappable 64Wh Battery with Flexible Accessories
Designed for long-hour operations, the 64Wh battery supports hot-swap and provides up to 12 hours of usage. Compatible accessories—including vehicle dock, office dock, battery charger, stylus, digitizer, hand strap and barcode reader—allow NB41 to adapt to various industries and mobile tasks.
Specifications
- Software
- Windows®11 IoT Enterprise
- Durability
-
MIL-STD-810G (Multiple 5ft /1.5 m Drops)
IP65
1m tumble test
Steel ball drop test, 25 mm diameter steel round ball weight of 250 gm from 50cm. w/o screen protector
Optional Glass screen protector
Operating temp. : -10⁰C ~50⁰C
Storage temp. : -20⁰C ~60⁰C
- CPU
- Intel® Alder Lake-N N100 / N200
- Storage & Memory
-
LPDDR5/LPDDR5X 16GB on board (optional 8GB)
M.2 2230 PCIE SSD 256GB (up to 1TB)
- Display
- 8", 16:10 ratio 1200x1920 IPS 650 nits
- Audio
-
2 x 1W Speaker
2 x Digital microphone
- Input
-
10-point multi-touch, support glove mode and wet-touch mode
6 Physical buttons (power, vol+, vol-, reset hole, 2 fn Key)
- Cameras
-
2MP front camera
8MP rear camera, Auto Focus, Flash
- Wireless
-
GPS / GLONASSS / GALILEO
Wi-Fi 6E (802.11ax)
Bluetooth® 5.3
- Interface
-
USB 3.2 Type A x1
USB 3.2 Type C x2
SDXC Card Reader (micro)
3.5mm Audio jack
RJ45 Gigabit Ethernet Port
19 pin pogo docking connector
2 x Internal USB
- Power Supply
-
Default Battery: 7.68V, 8.340mAH, 64Wh
Battery operation: up to 12 hours
Backup Battey: 7.4V,142mAh, 1.05Wh
- Security
-
Firmware Trusted Platform Module (TPM 2.0)
Kensington cable lock slot
- Dimensions & Weight
-
9.2" x 5.9" x 0.9" (233.6mm x 149mm x 22 mm)
1050g w/o screen protector
- Collaboration
-
9 Axis MEMS sensor (Accelerometer, eCompass, Gyroscope)
Ambient Light Sensor
Optional 1D/2D Barcode Reader
- LED Indicators
- Power, Battery, WIFI
- Accessories
-
Type C PD-in Adapter 65W (20V / 3.25A)

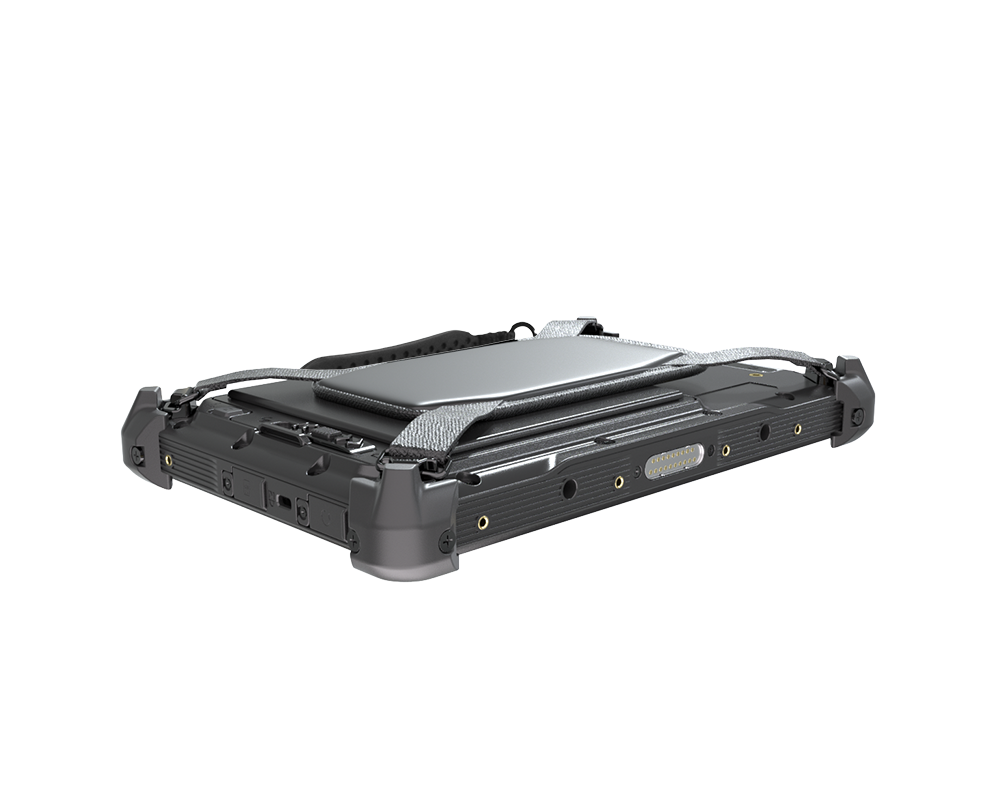

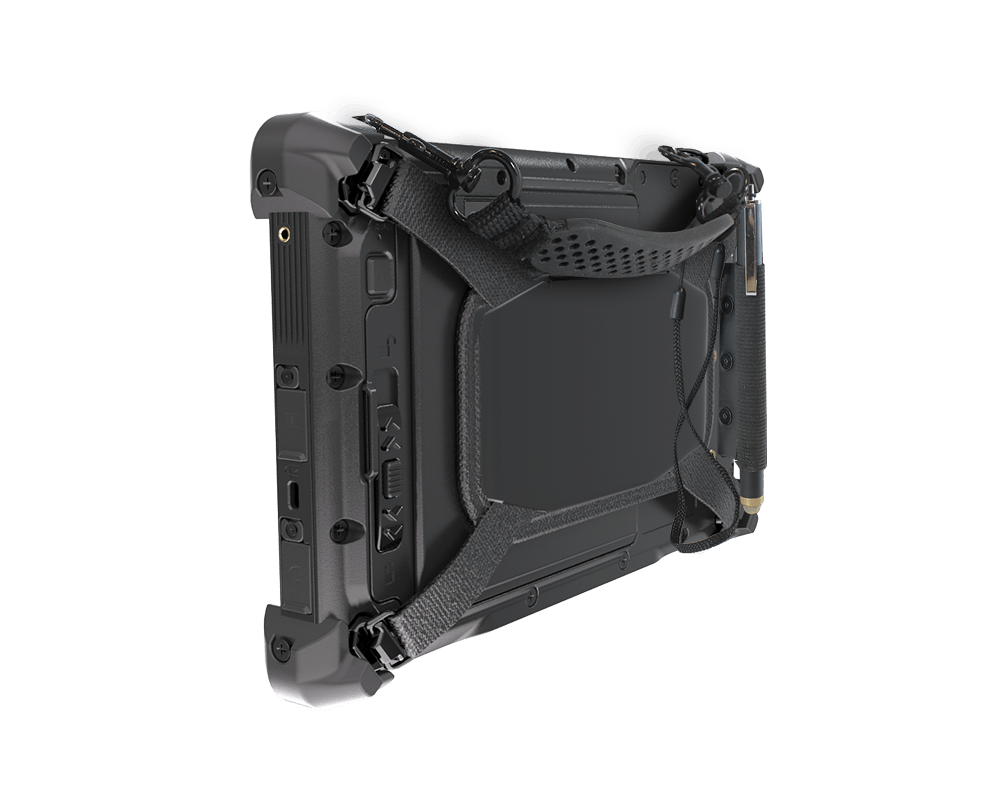

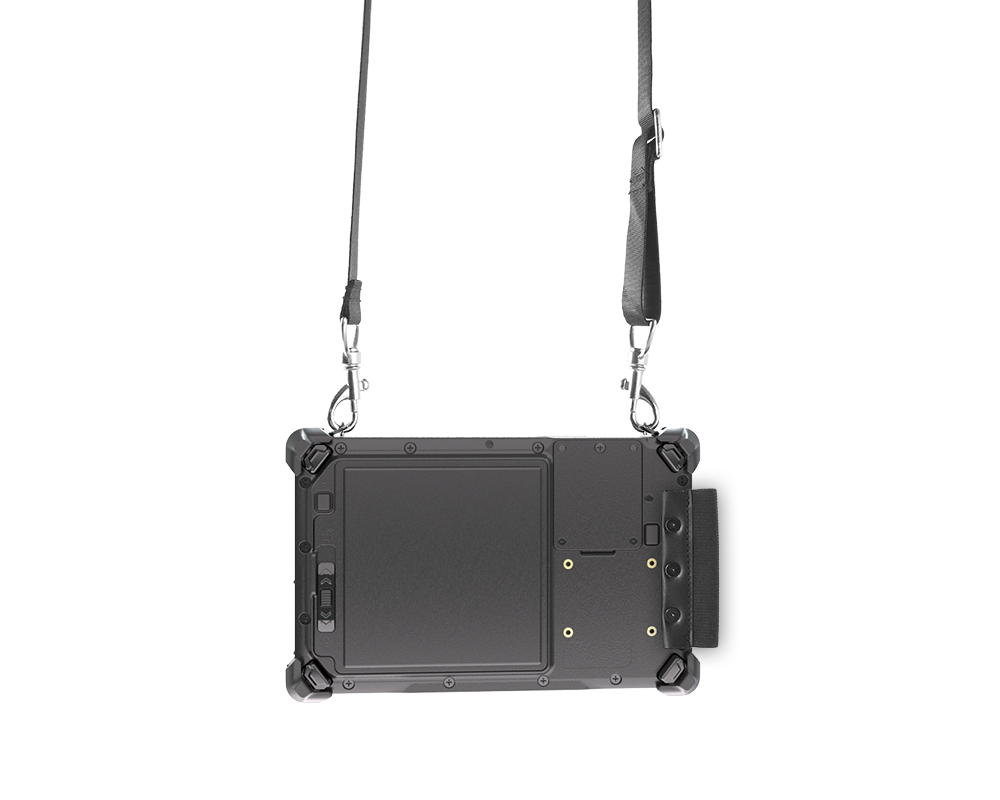

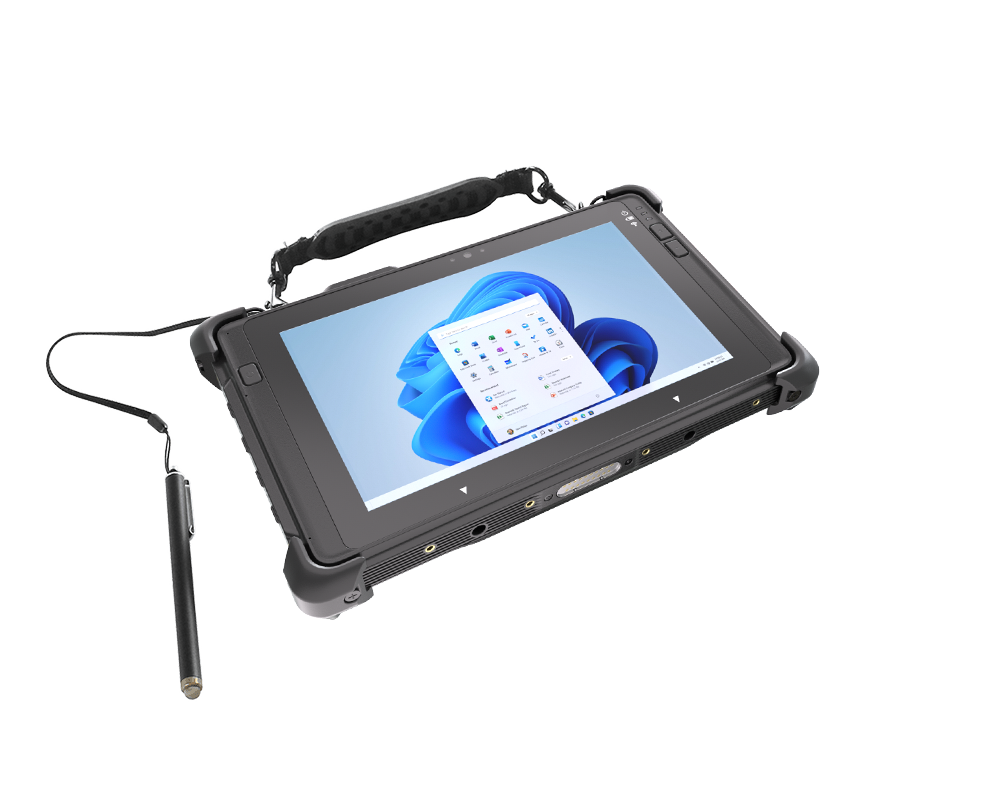

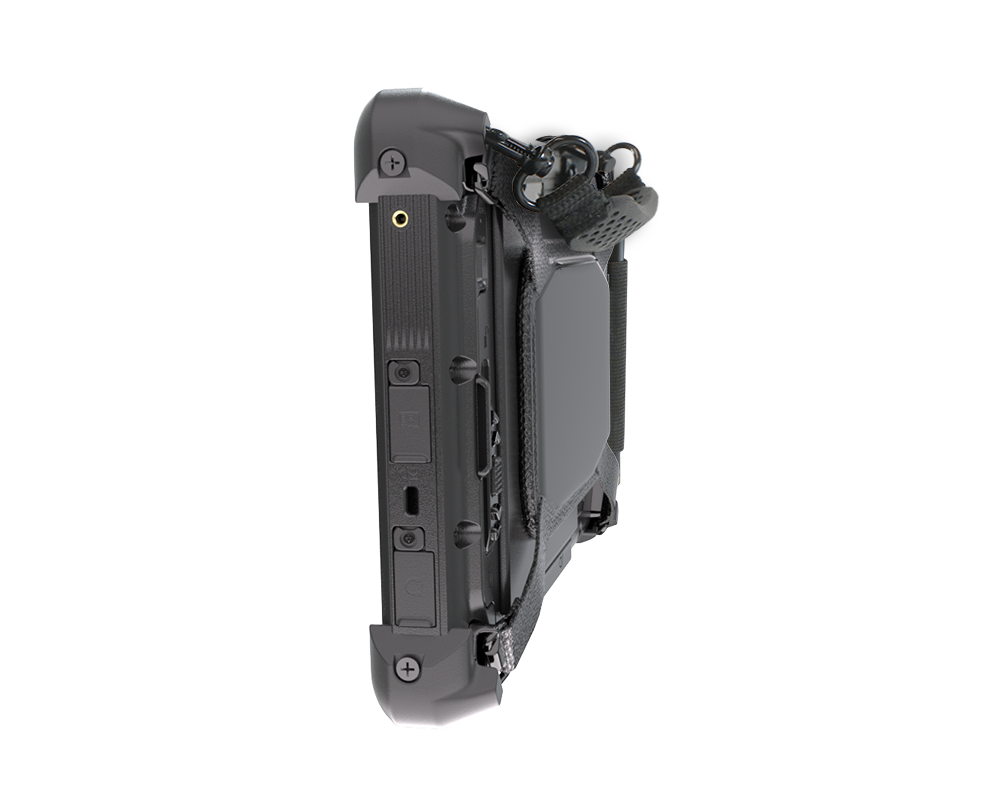

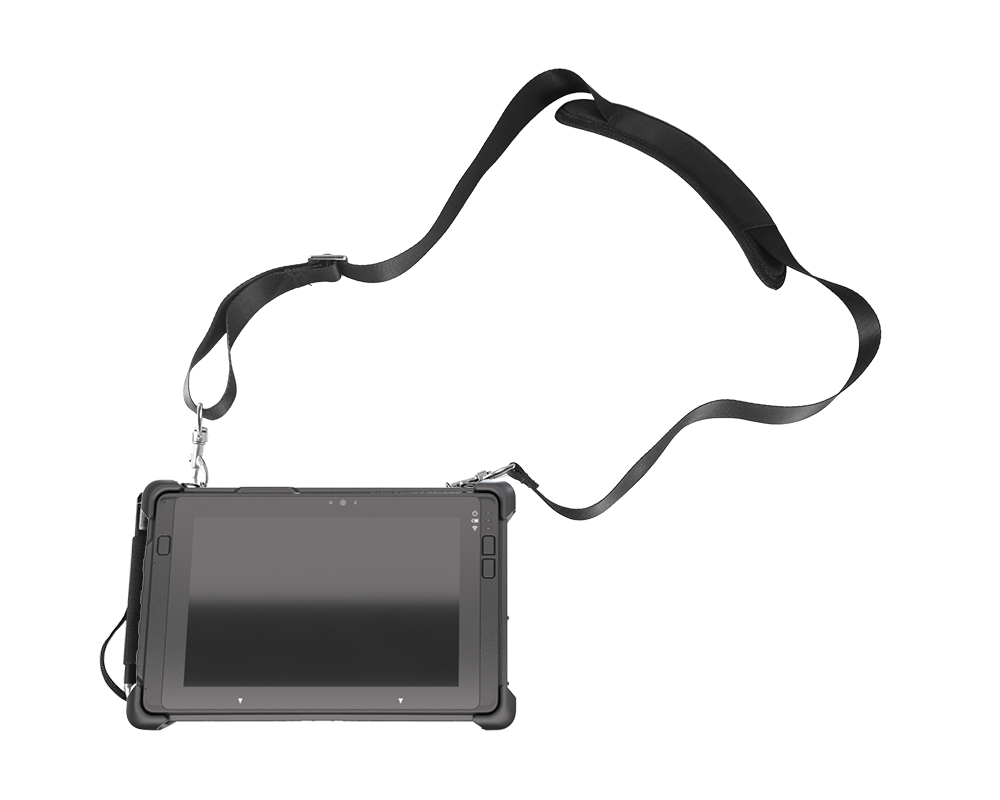

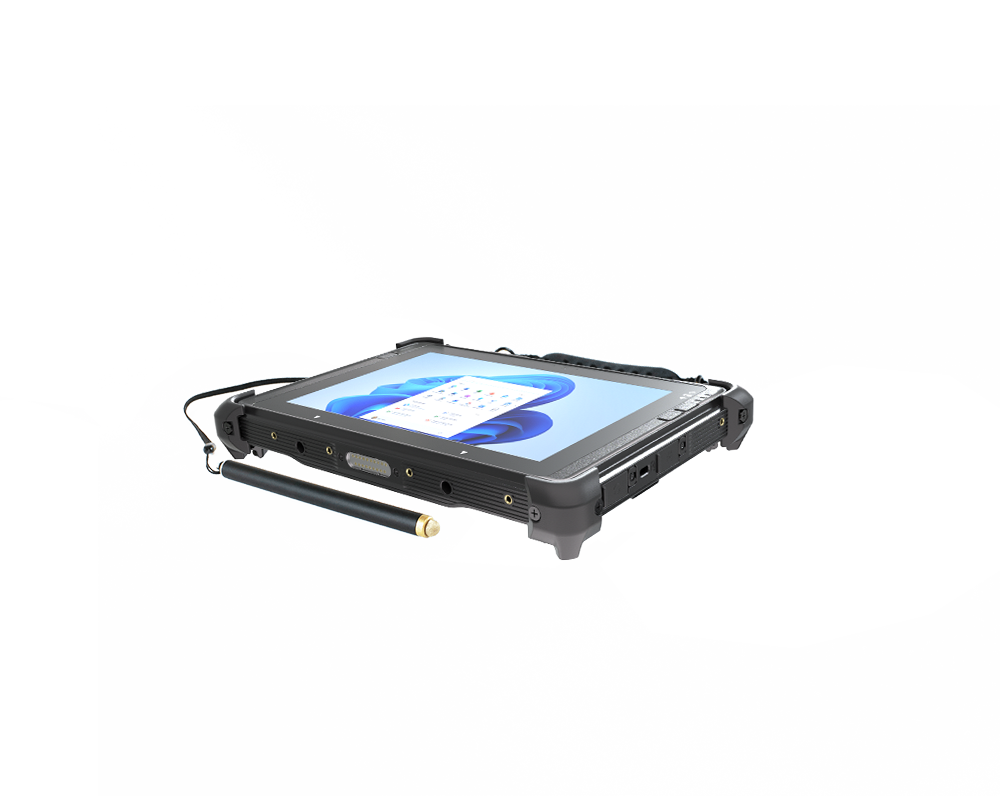

Hand strap with stylus holder
Optional Capacitive stylus pen
Optional Digitizer

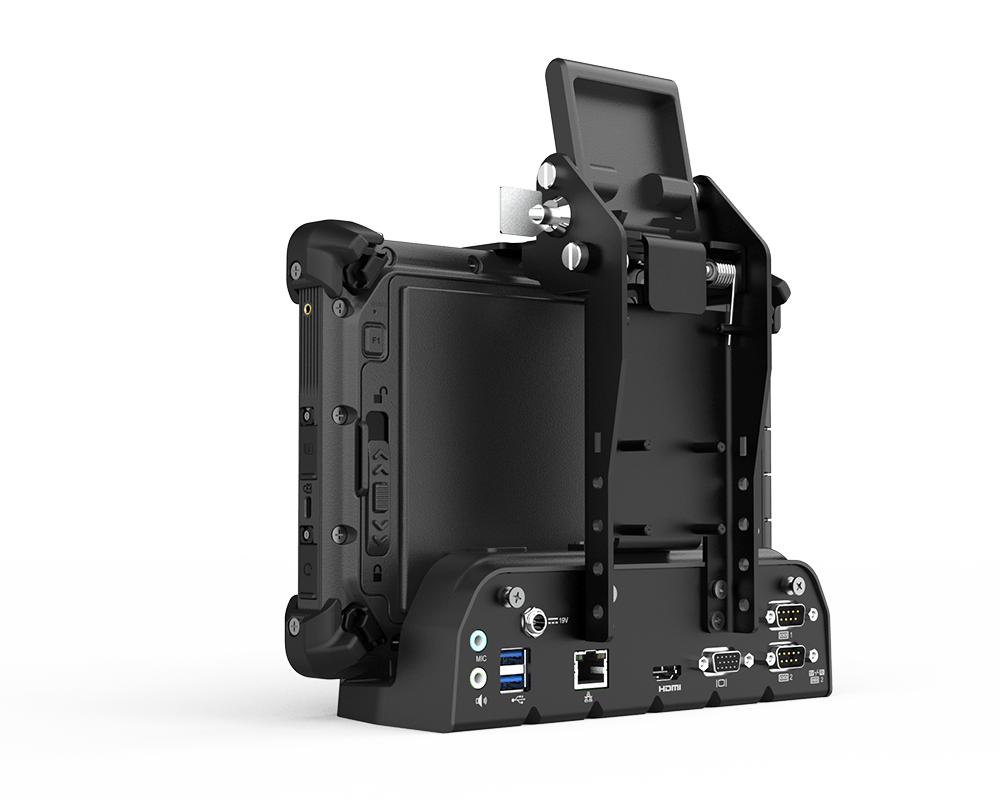

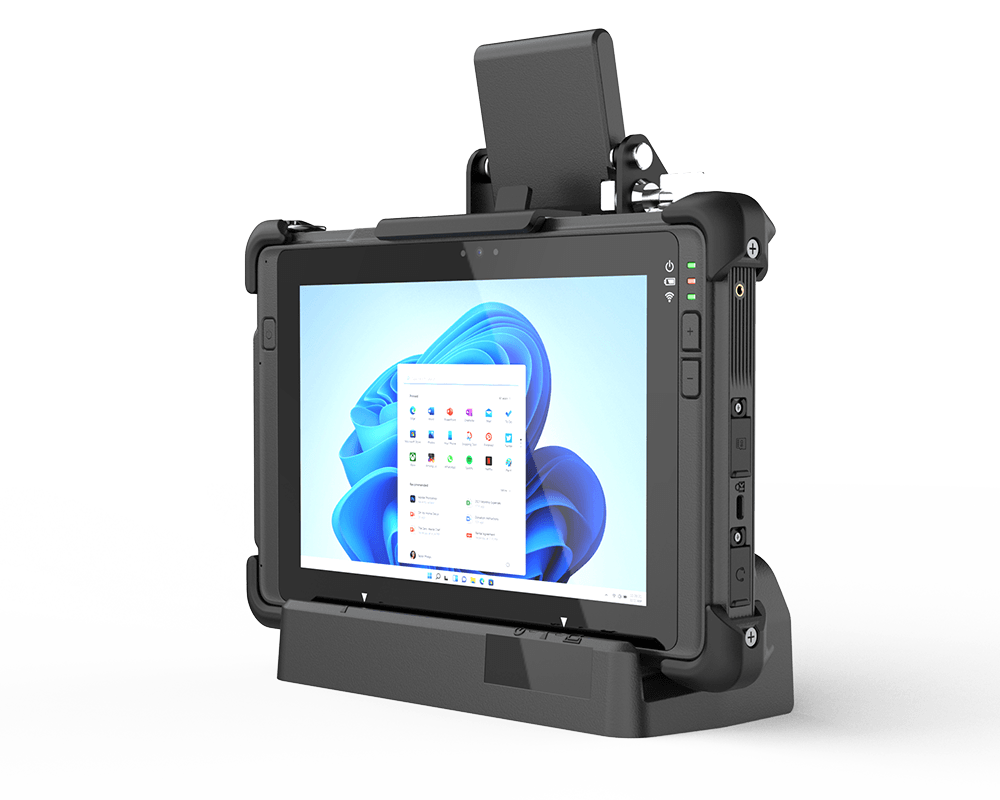

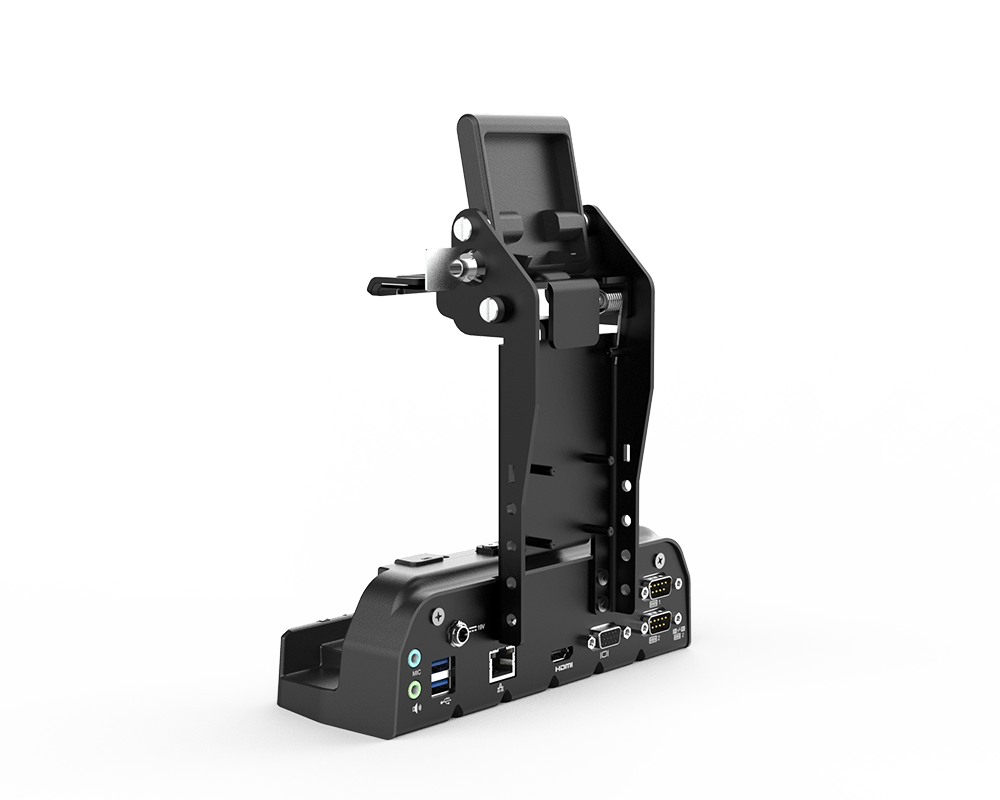

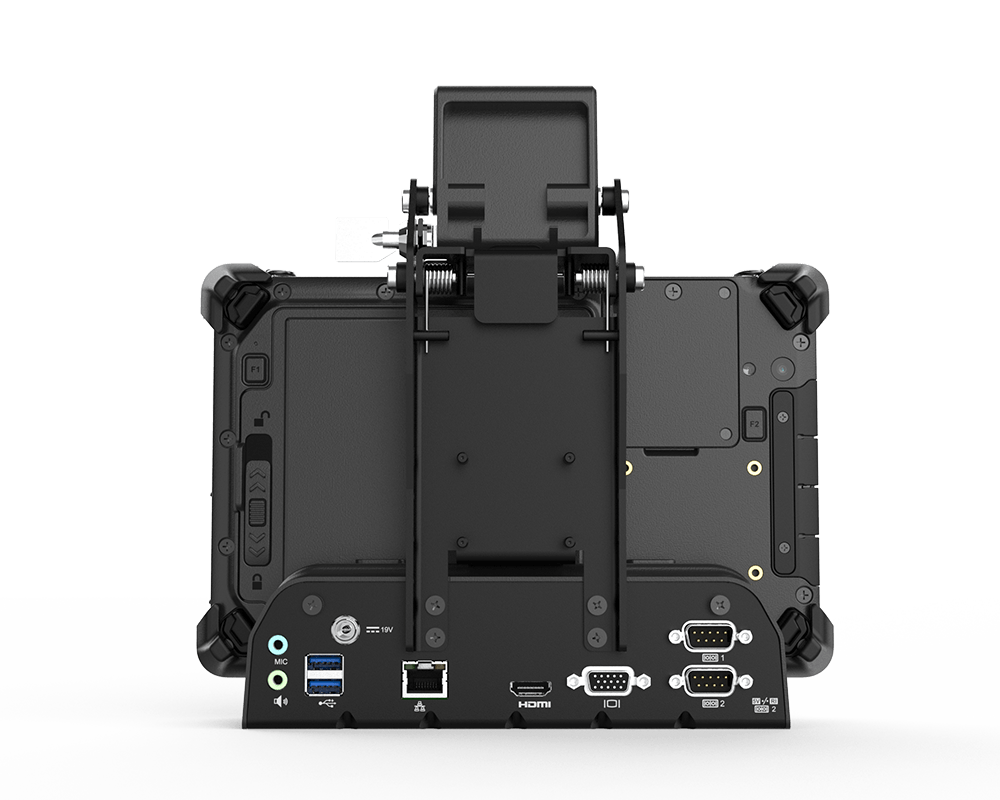

Optional Vehicle Dock

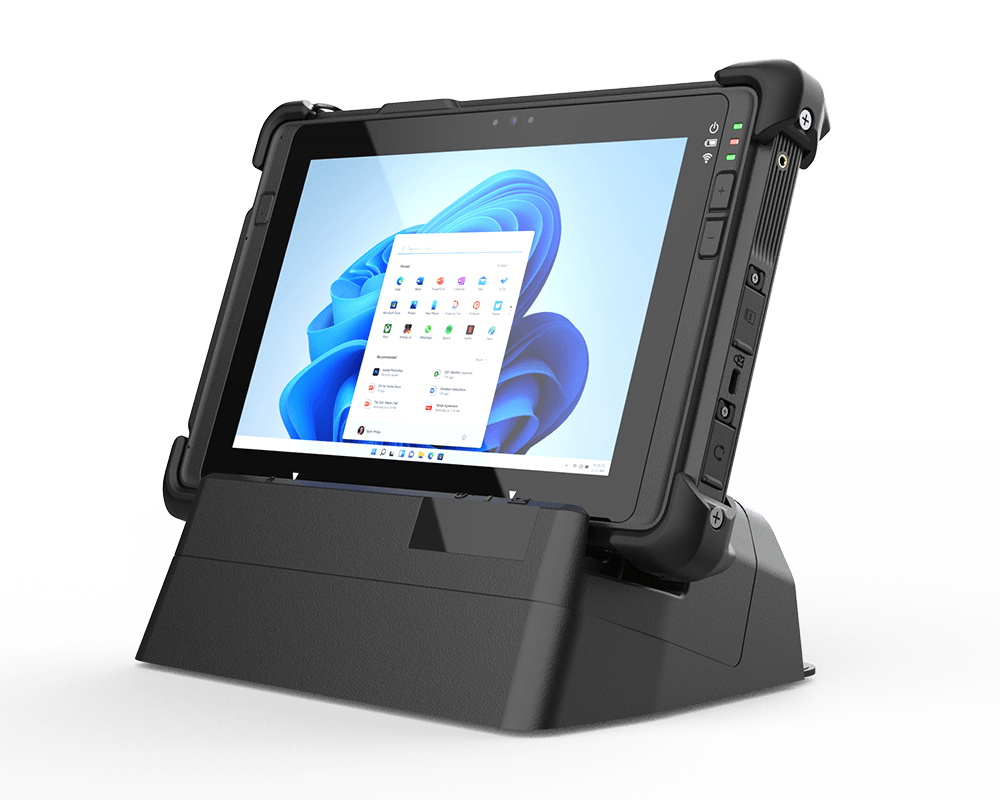

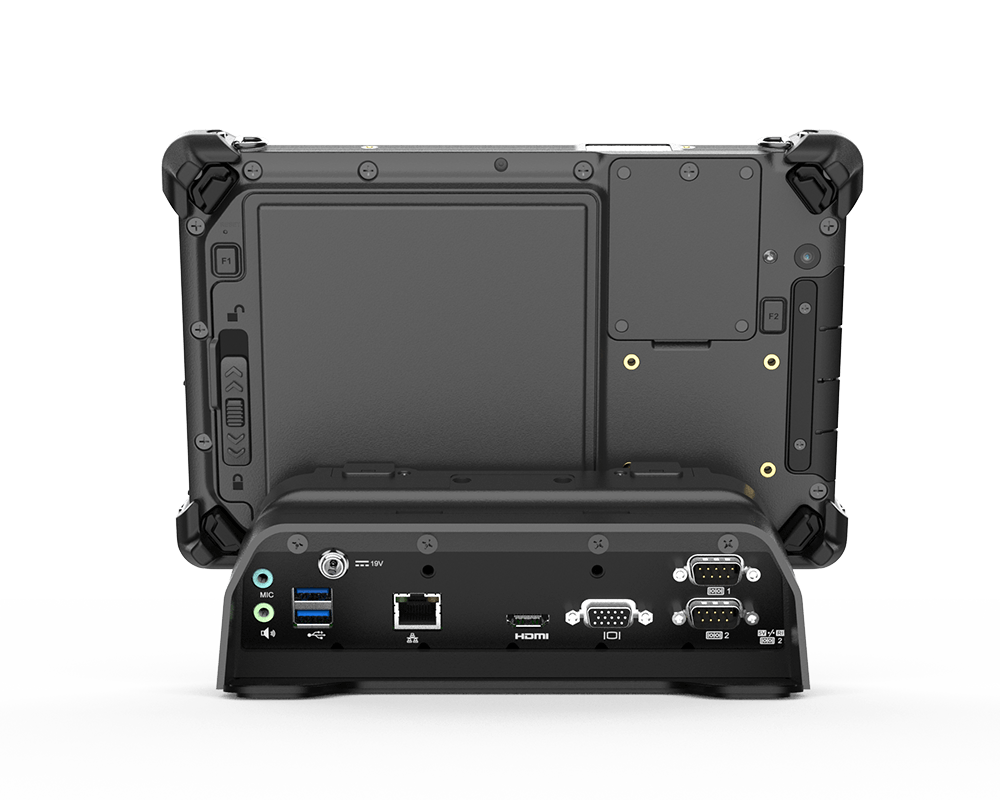

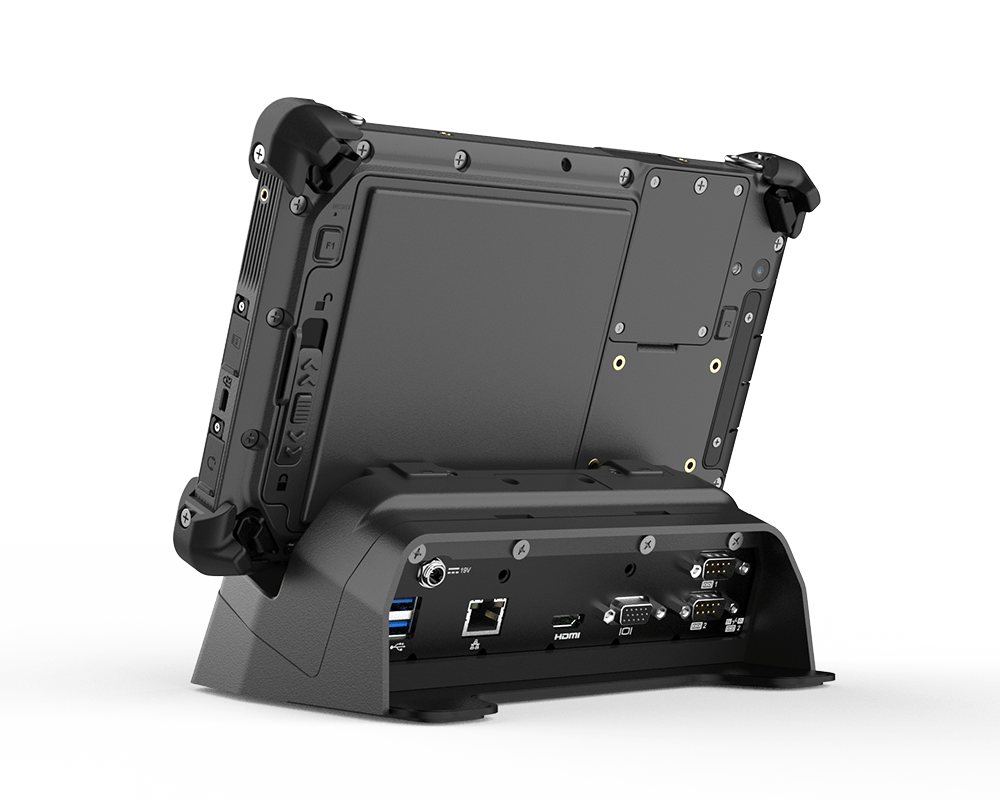

Optional Office Dock

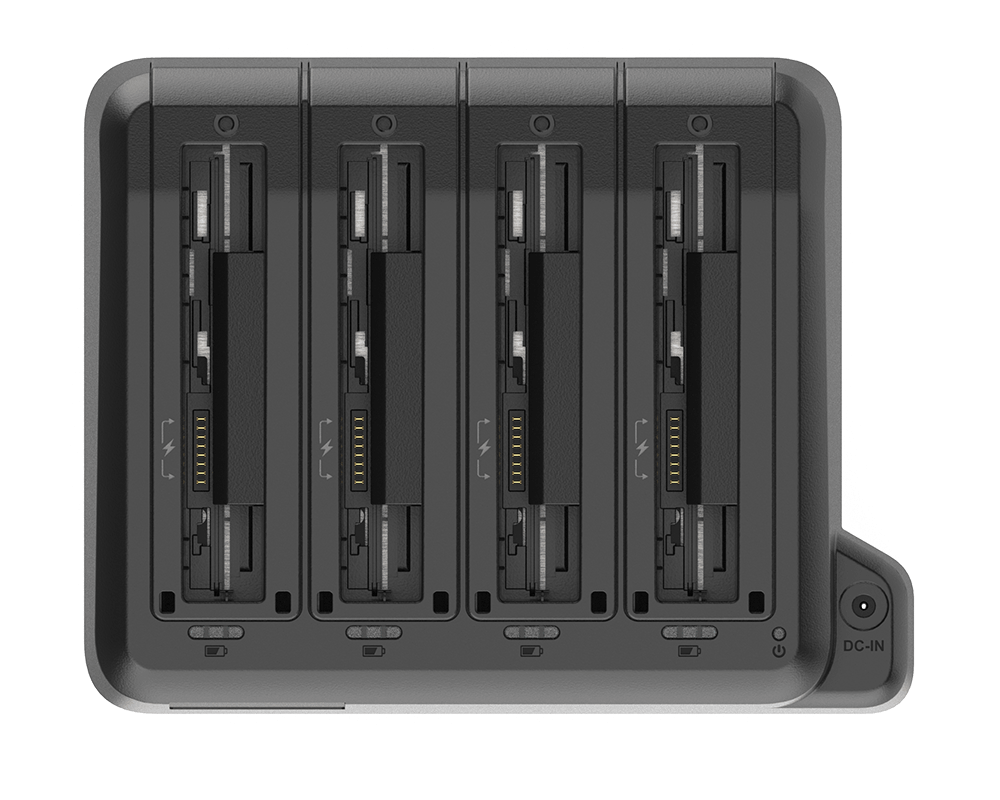

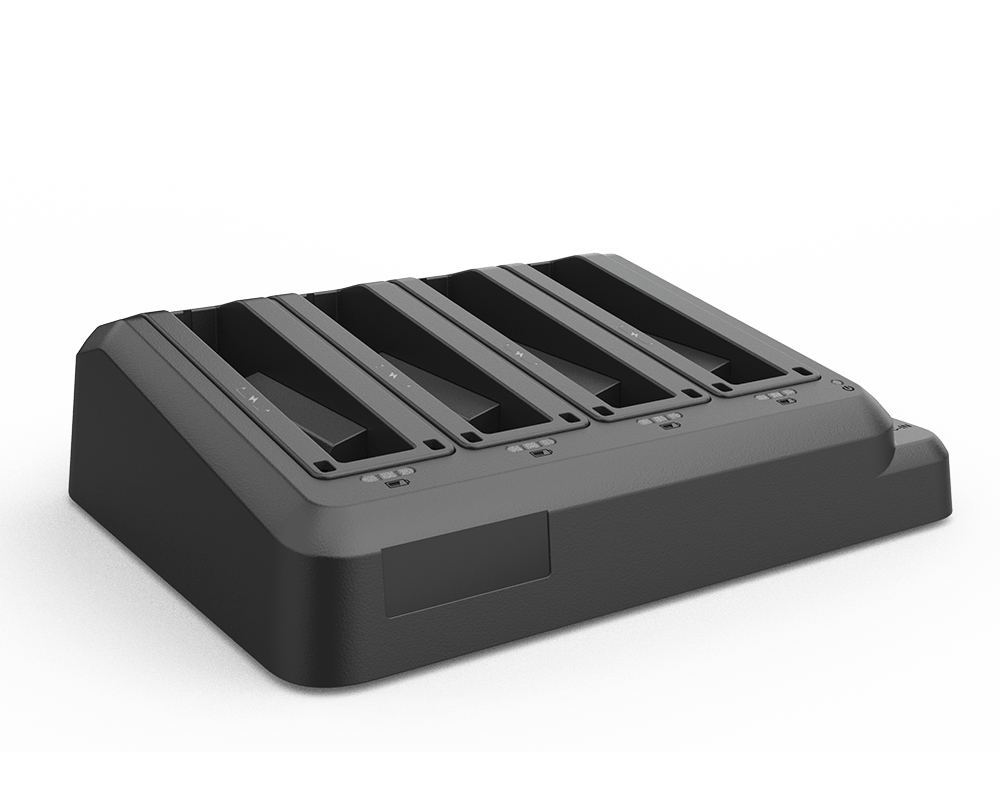

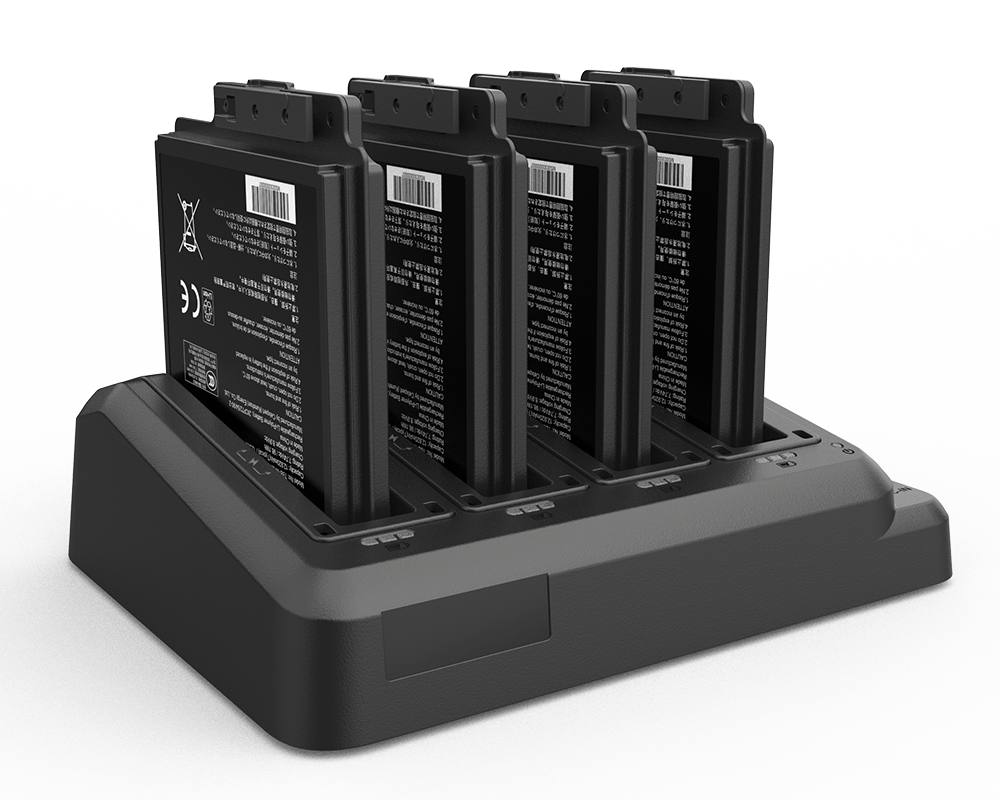

Optional Battery Charger
