NE21
Slim and Rugged Design 11.6" Tablet with IP65, MIL-STD-810G and Hot-Swappable 64Wh Battery.
-

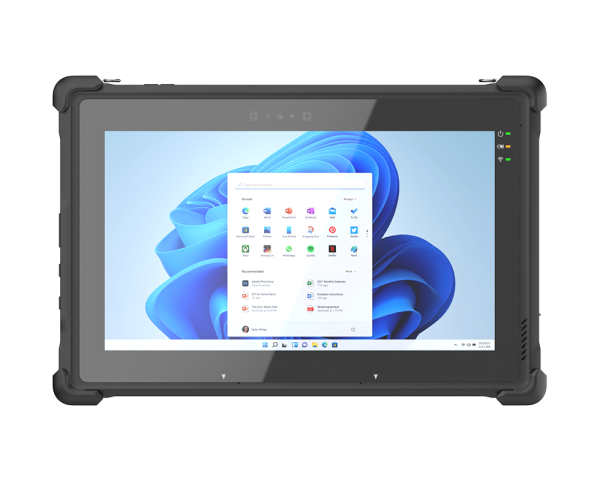

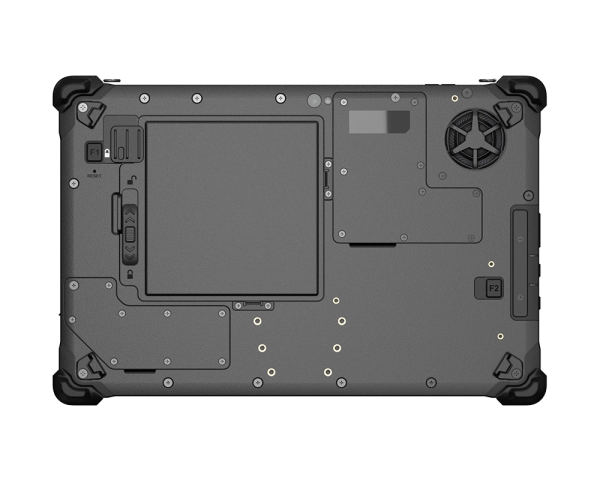

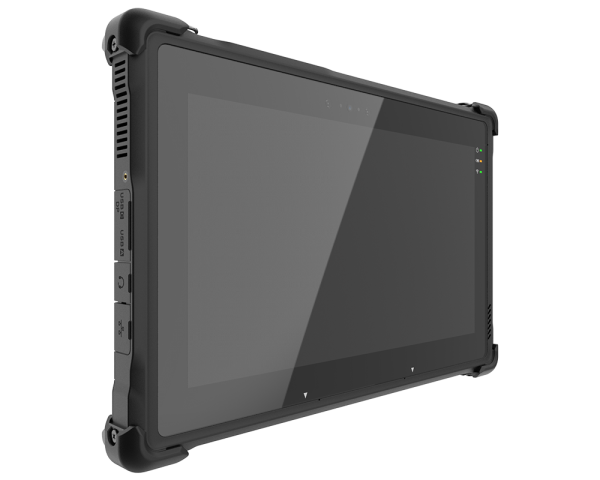

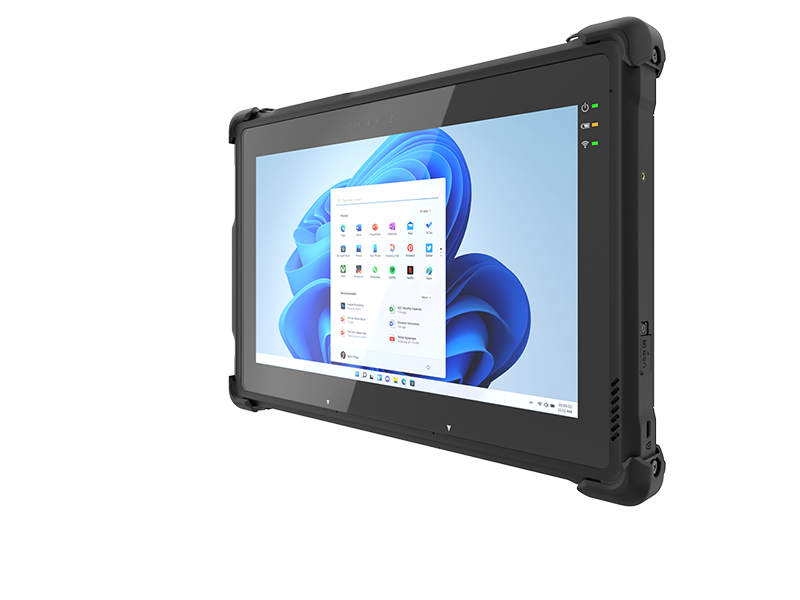

NE21 11.6" Rugged Tablet
- MIL-STD 810G tested, 4ft. / 1.2m drop proof, IP65, one-meter tumble test.
- Hot swap battery, integrated 7.68V, 8340mAh (64Wh) battery pack.
- Support Type-C Alt mode video output
- Firmware TPM 2.0. Optional hardware TPM2.0.
- Gb Ethernet port with PXE support for reliable communication & maintenance.
- Sunlight Readable High brightness 650nits LCD display
- Support Wifi 6E
- Optional Windows® Hello camera.
- Optional vehicle dock, office dock, battery charger

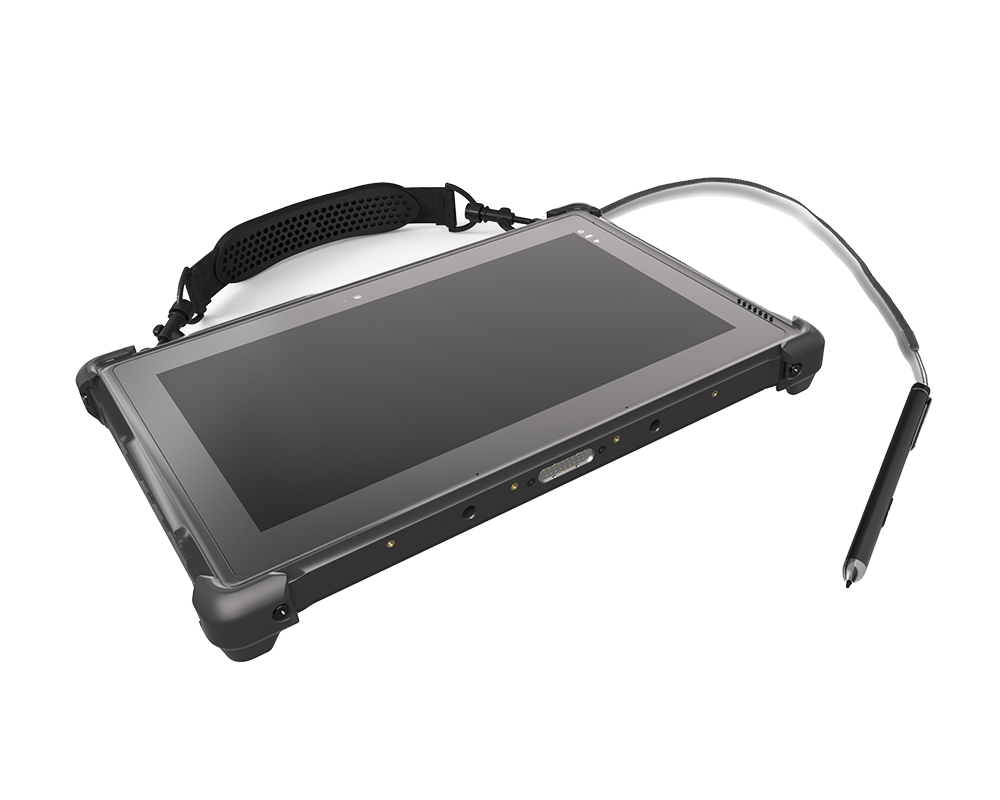

- Optional digitizer, stylus, briefcase handle, hand strap, NFC.
- Optional 4G LTE multi carrier mobile broadband.
- Optional 1D/2D barcode readers for data acquisition.
Features
-
-

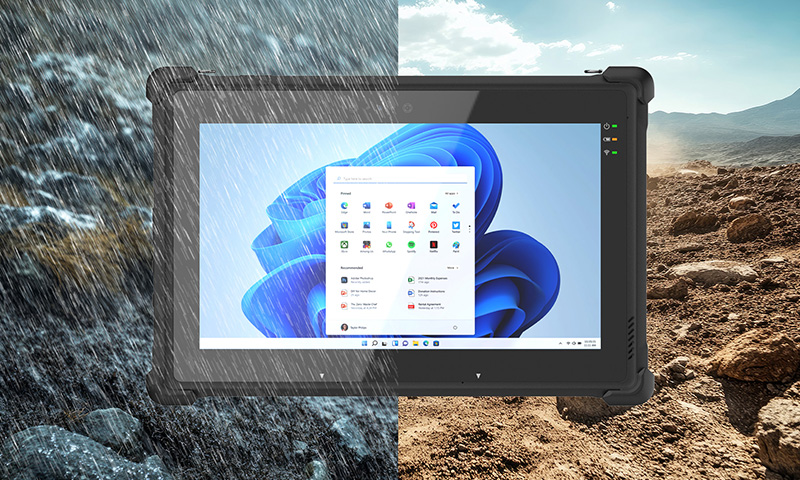

Rugged Design for Demanding Workloads
NE21 is built to survive tough environments with IP65 sealing, MIL-STD-810G durability, 4 ft drop protection and 1 m tumble testing. Its reinforced structure ensures consistent reliability during outdoor inspections, industrial operations and field service tasks.
-
-

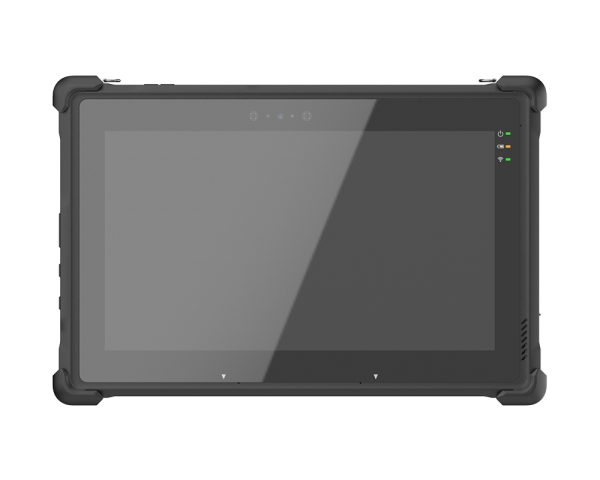

11.6" Sunlight-Readable Display for All-Weather Use
Featuring an FHD IPS panel with 650 nits brightness, the screen remains clear even under direct sunlight. Glove and wet-touch support enable accurate input in rain, with gloves or when working in unpredictable conditions.
-
-

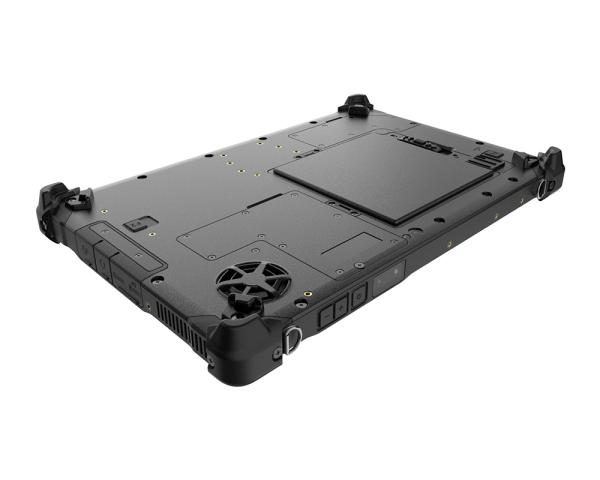

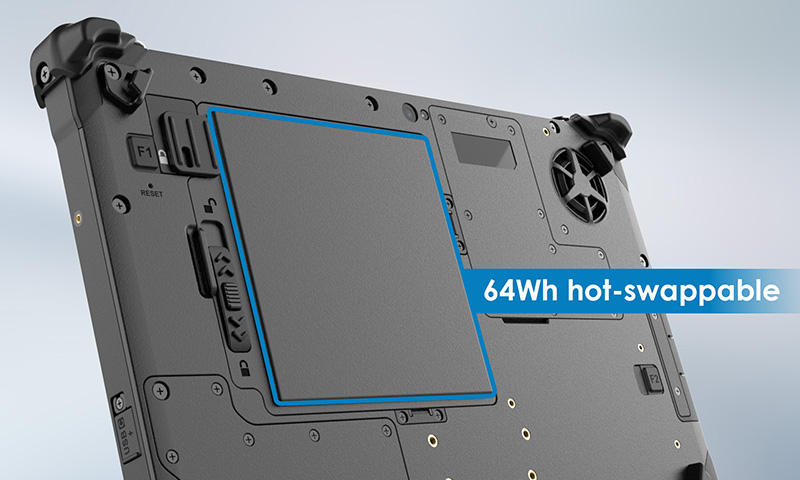

Hot-Swappable 64Wh Battery for Continuous Operation
Designed for long-hour field work, the 64Wh hot-swappable battery allows users to replace power without shutting down the device. This ensures uninterrupted productivity during extended shifts and mission-critical outdoor assignments. An optional 98.1Wh XL battery is also available for customers seeking even longer operating time.
-
-

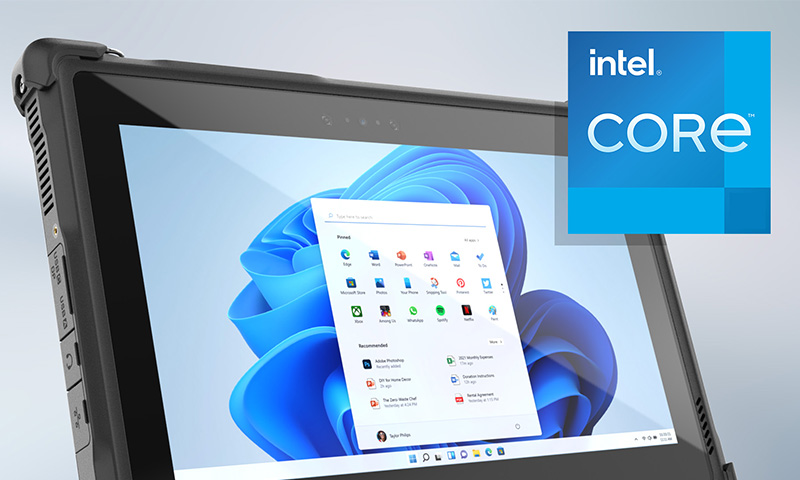

13th Gen Intel® Core™ Performance in a Rugged Form Factor
Powered by Intel® 13th Gen Core™ processors, NE21 delivers fast and stable computing for data collection, diagnostics and enterprise applications. Its high-efficiency cooling system and sealed design enhance reliability in dusty or harsh industrial environments.
-
-

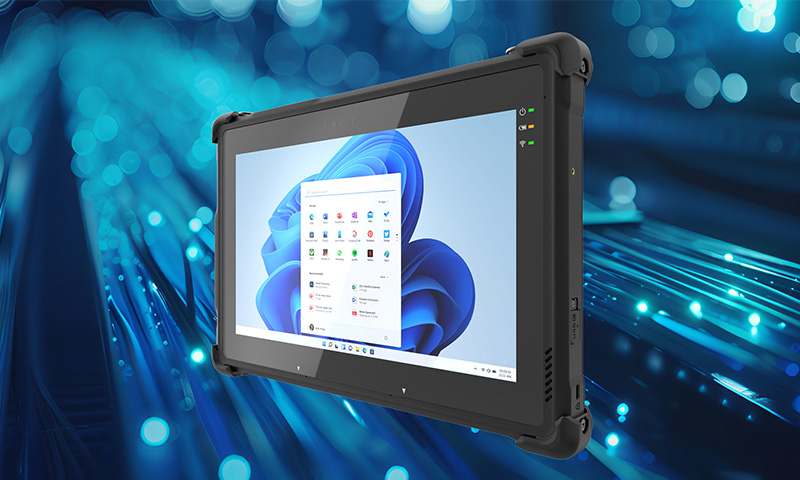

Versatile Connectivity and Expansion to Fit Any Workflow
NE21 supports Wi-Fi 6E, Bluetooth® 5.3 and optional multi-carrier LTE for stable communication across large workspaces. With GPS/GLONASS/Galileo and rich I/O—including USB Type-C, USB Type-A and Gigabit RJ45—plus options like NFC, barcode reader and docking stations, the device adapts to a wide range of professional workflows.
Specifications
- Software
- Windows®11 IoT
- Durability
-
MIL-STD-810G (Multiple 4' / 1.2 m Drops)
IP65
1m tumble test
Steel ball drop test, 25 mm diameter steel round ball weight of 250 g from 50 cm, w/o screen protector Optional Glass screen protector
Operating temp.: -10°C ~ 50°C
Storage temp.: -20°C ~ 60°C
- CPU
- Intel® 13th Gen Core™ i Series (Raptor Lake-U)
- Storage & Memory
-
LPDDR5/LPDDR5X 8G (on board / Options up to 32G)
M.2 2280 PCIE SSD 256GB(up to 2TB)
- Display
- 11.6", 16:9 ratio 1920×1080 IPS 650 nits Sunlight readable
- Audio
-
2W x 1 Speaker
2 x Digital microphone
- Input
-
10-point multi-touch
support glove mode and wet-touch mode
Physical buttons (power, vol+, vol-, 2 fn key)
Support MPP2.0
- Cameras
-
2.0 MP FF front camera
8.0 MP AF rear camera w/ Flash Light
- Wireless
-
GPS / GLONASSS / GALILEO
WIFI 6E
Bluetooth® 5.3
Optional 4G LTE
- Interface
-
Docking connector
USB 3.1 Type A x 1
USB 3.1 Type C x 1(support Alt mode)
USB 2.0 Type C x 1(support PD(repaireable)
RJ45 Gigabit Ethernet Port
3.5mm Audio jack
SIM Card Reader (Nano)
SDXC Card Reader (Micro)
Reset hole
- Power Supply
-
Hot swappable battery
Default Battery: 7.68V, 8,340mAh, 64Wh
Optional High Capacity Battery:
7.74V, 12,662mAh, 98.1Wh
Battery operation: up to 7.5 hours
Backup Battery: 7.4V, 142mAh (1.09Wh)
- Security
-
Trusted Platform Module (TPM 2.0)
Kensington cable lock slot
Optional Windows® Hello
- Dimensions & Weight
-
12.4" x 8.07" x 0.84" (315mm x 205mm x 21.5mm)
1625g w/o screen protector
(Standard battery: 302g, XL battery: 413g)
- Collaboration
-
9 Axis MEMS sensor
(Accelerometer, eCompass, Gyroscope) Ambient Light Sensor
Proximity Sensor
- LED Indicators
- Power, Battery, WIFI
- Accessories
-
AC Adapter PD Type-C 65W, 20V, 3.25A

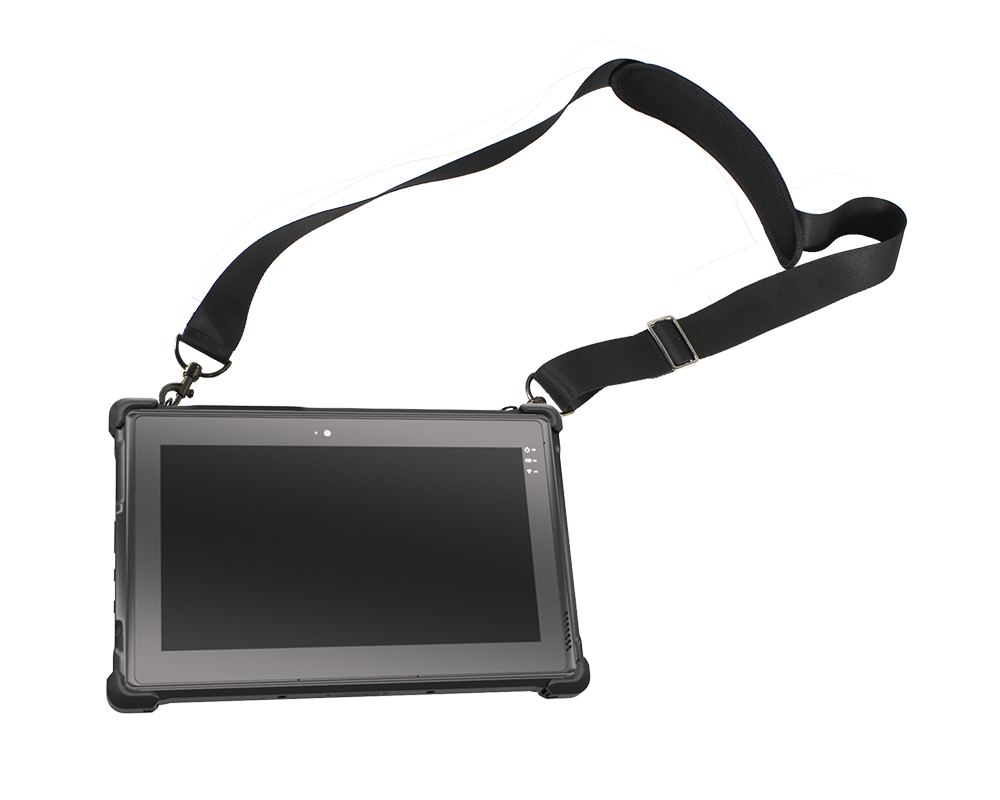

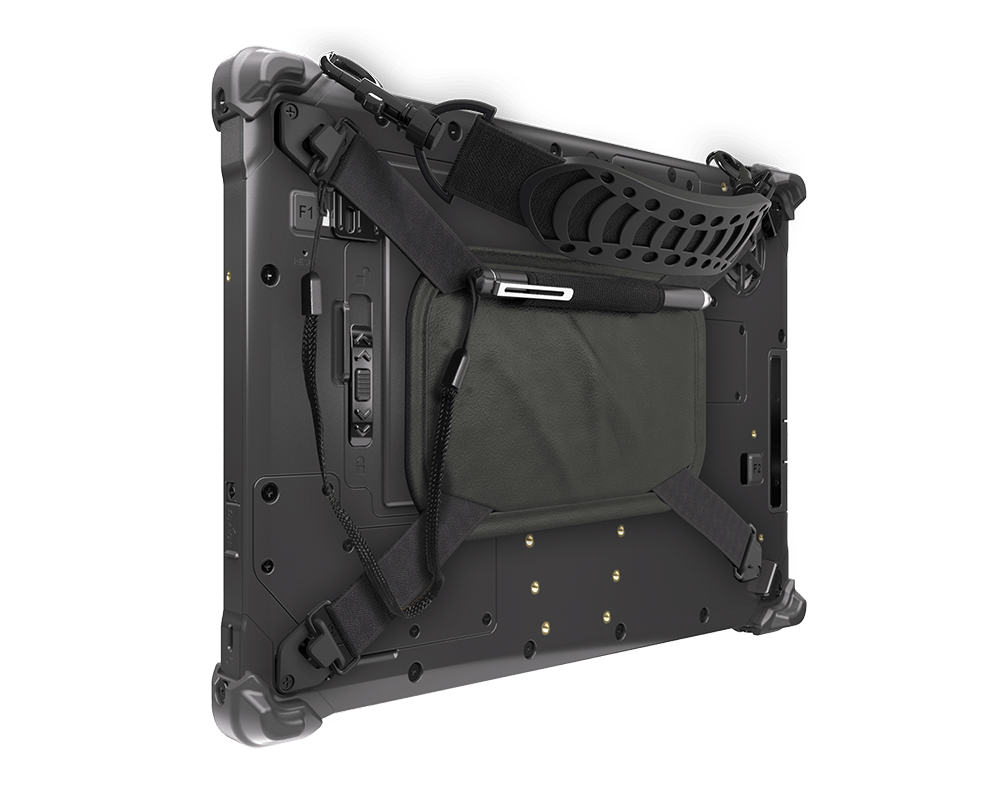

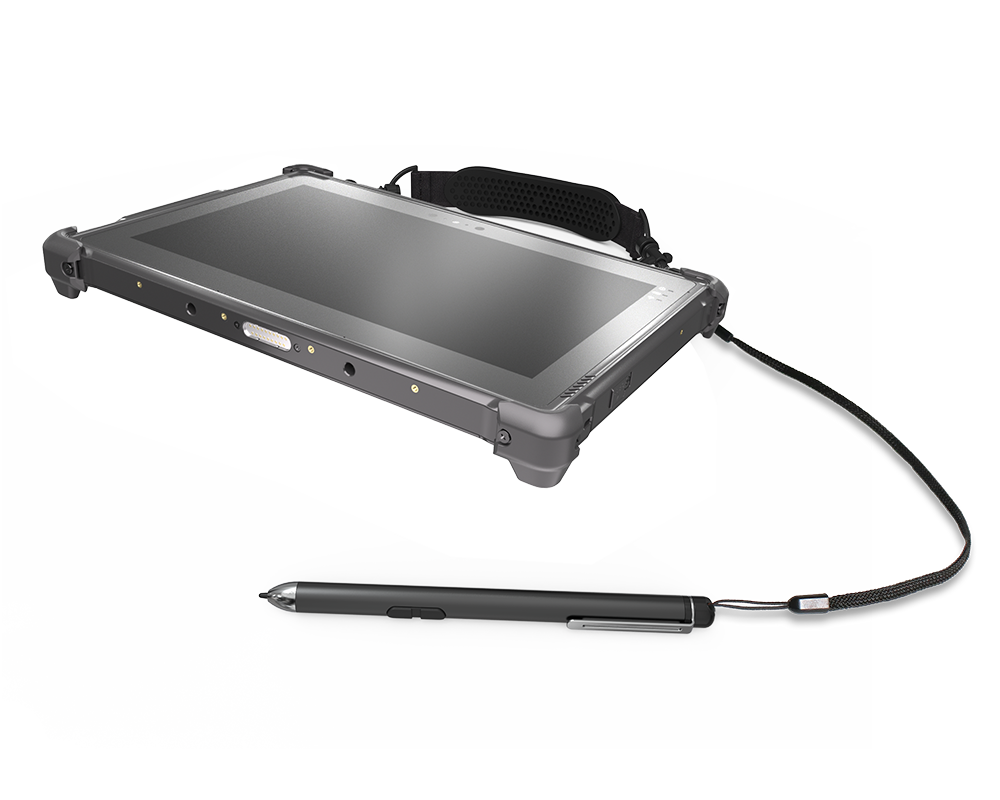

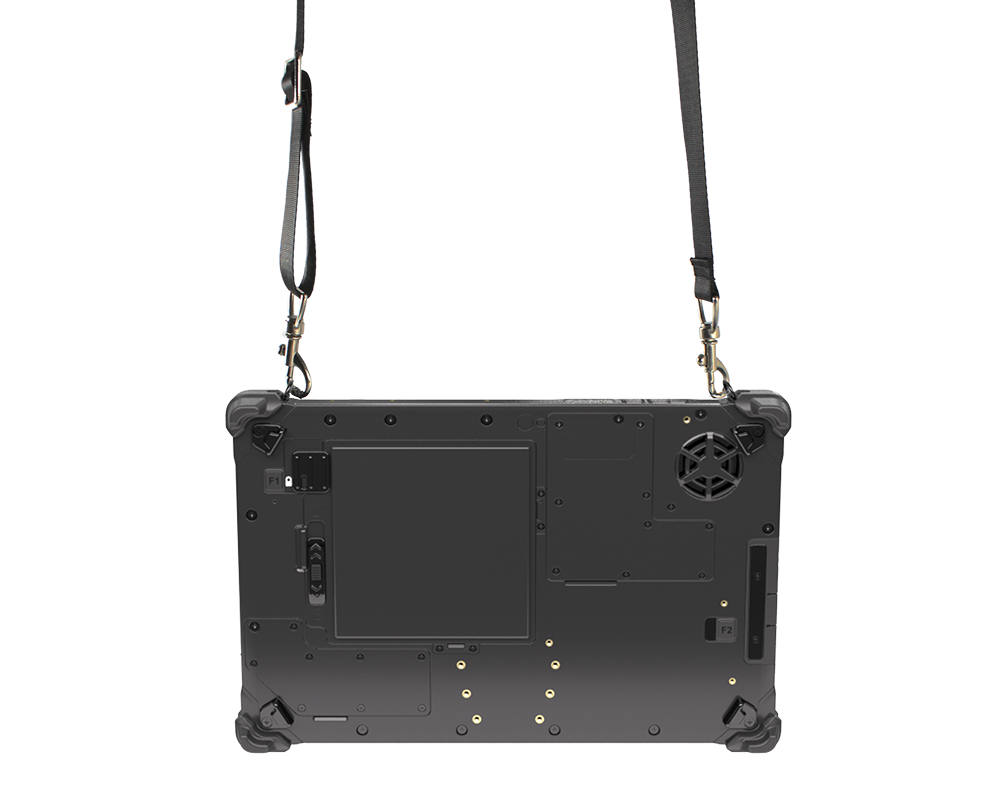

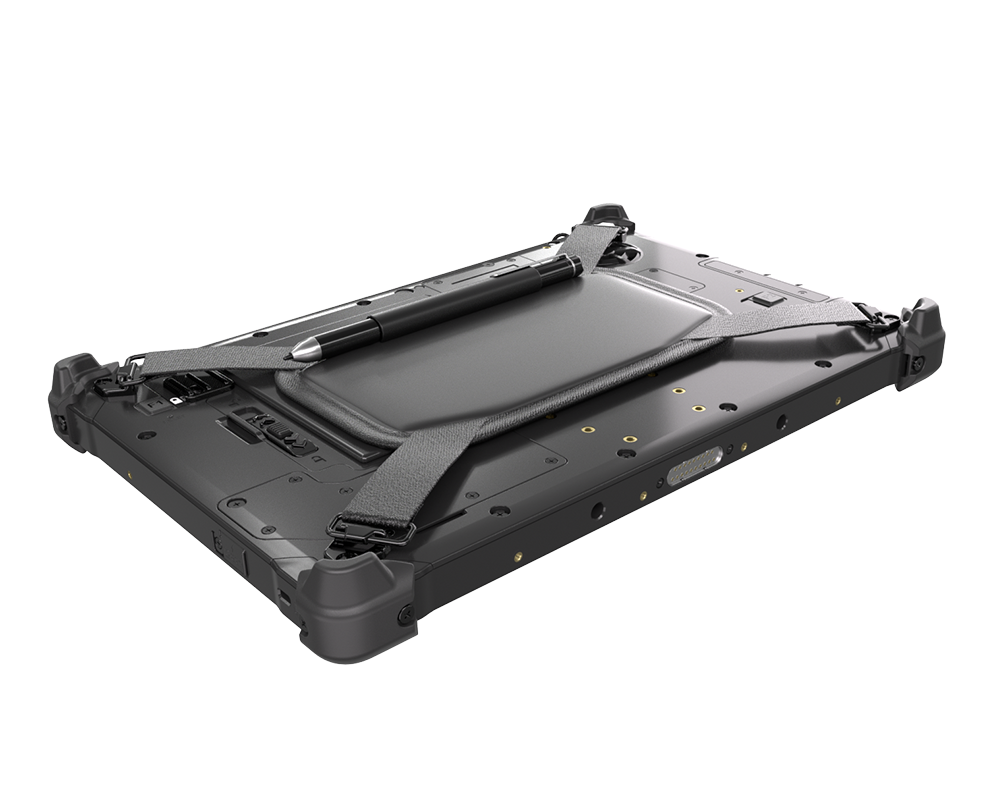

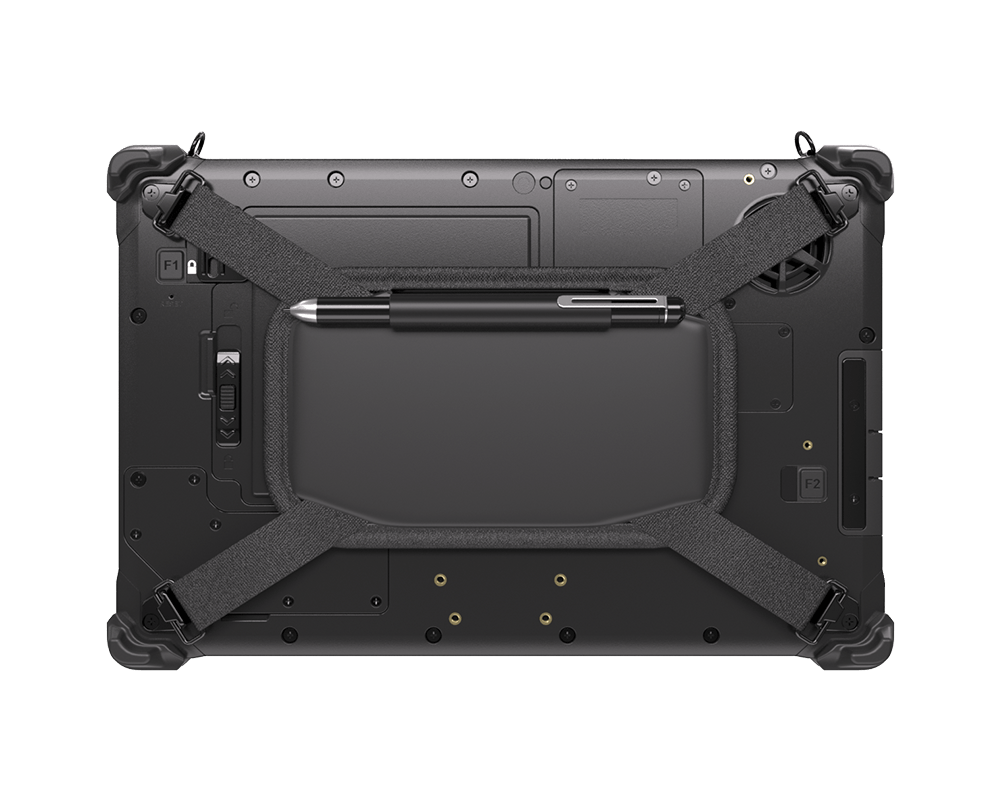

Hand strap with stylus holder

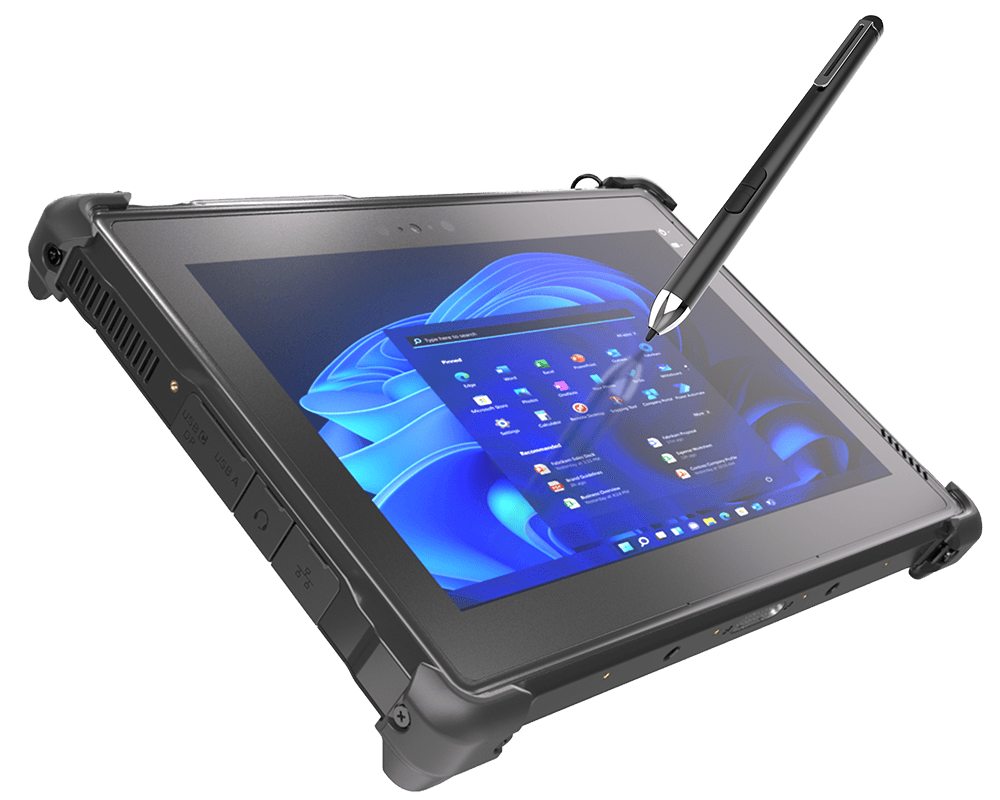

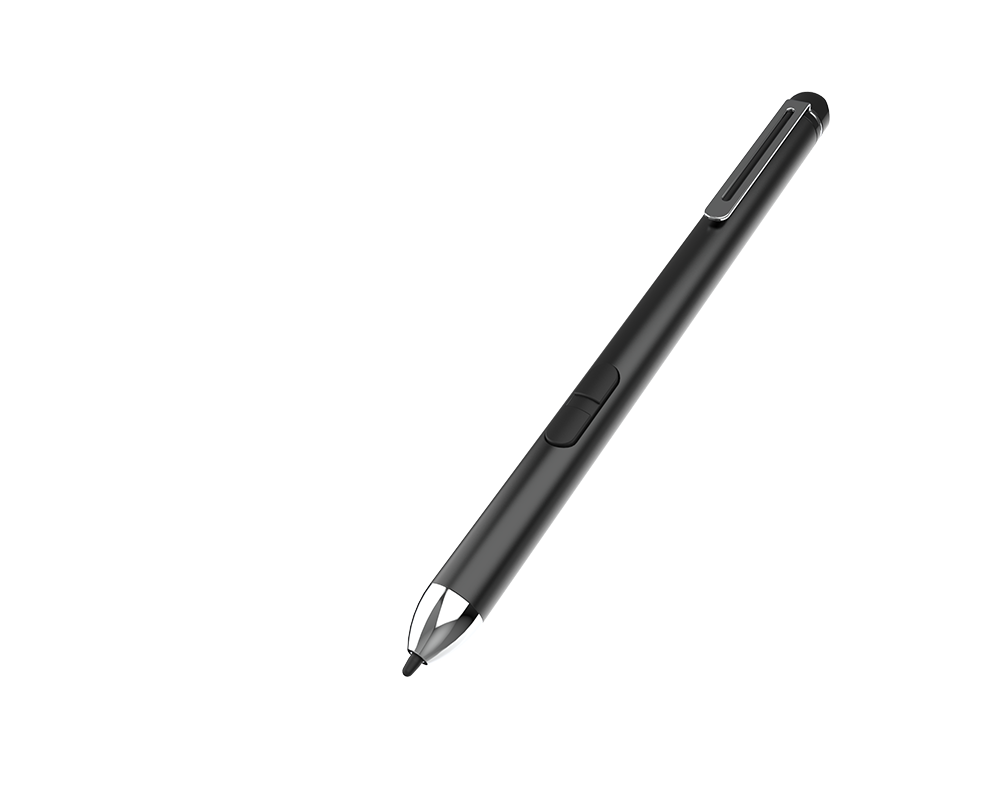

Optional Capacitive stylus pen
Optional Digitizer
Optional 1D/2D Barcode Reader
Optional NFC

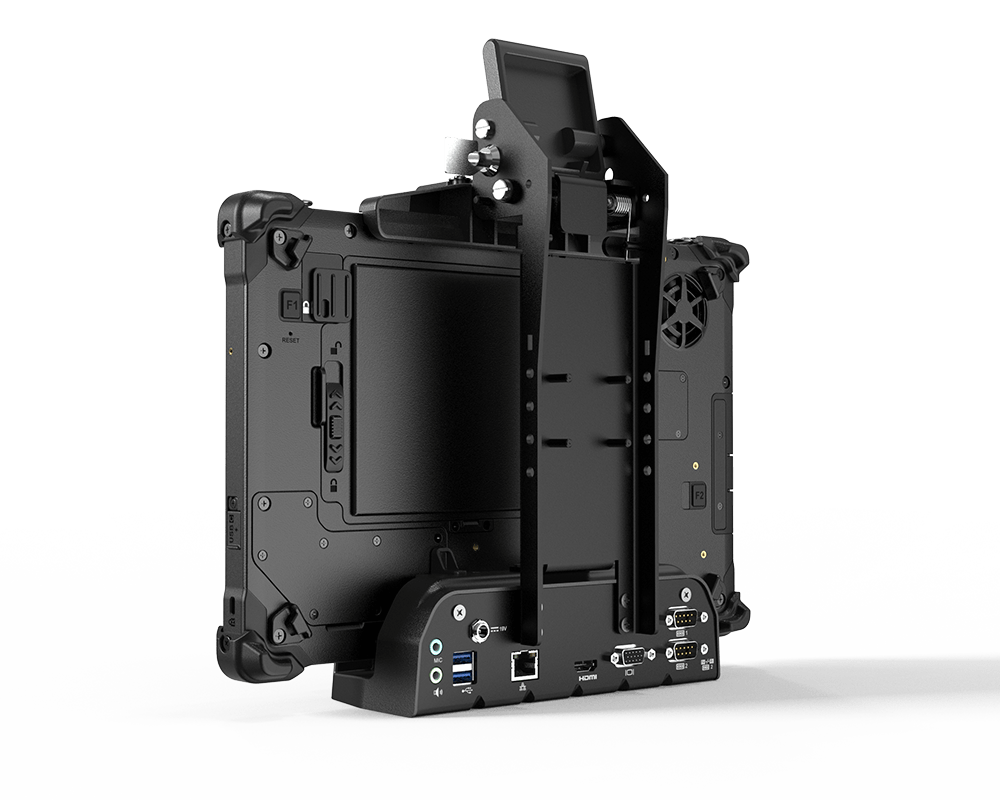

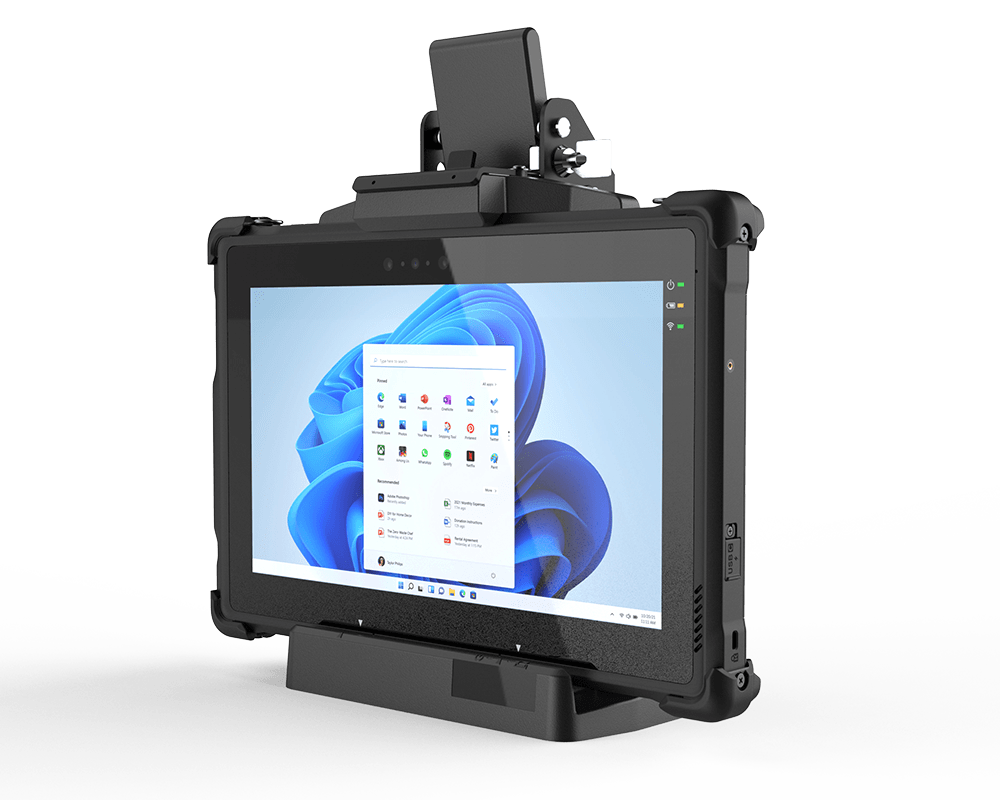

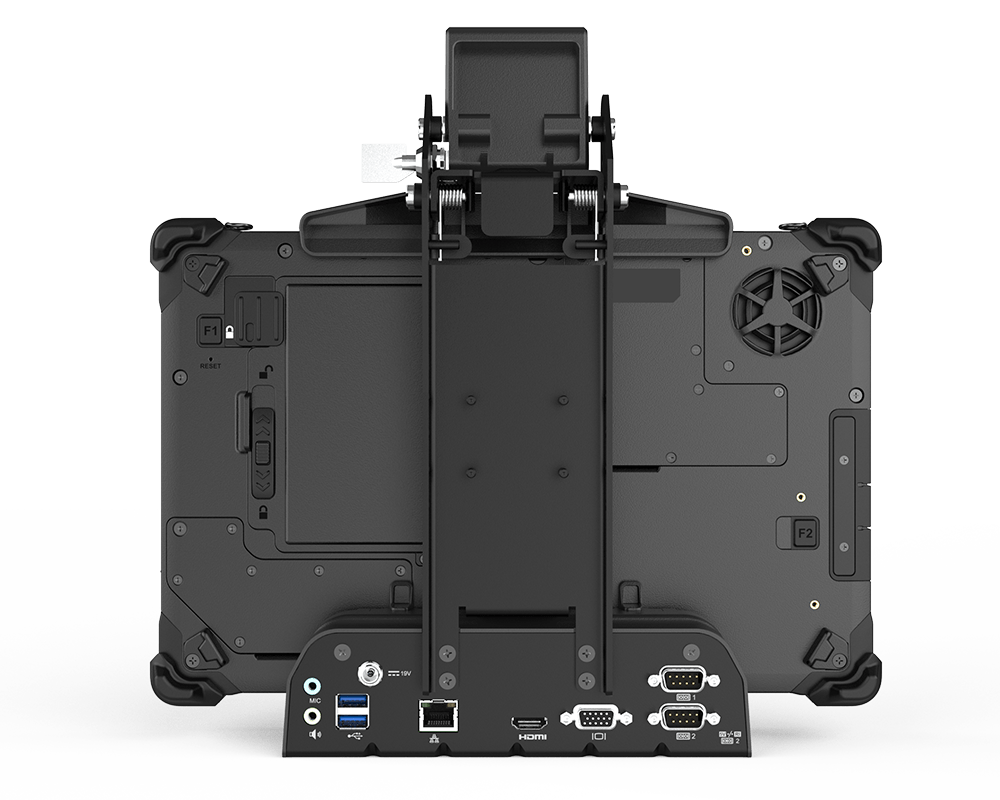

Optional Vehicle Dock

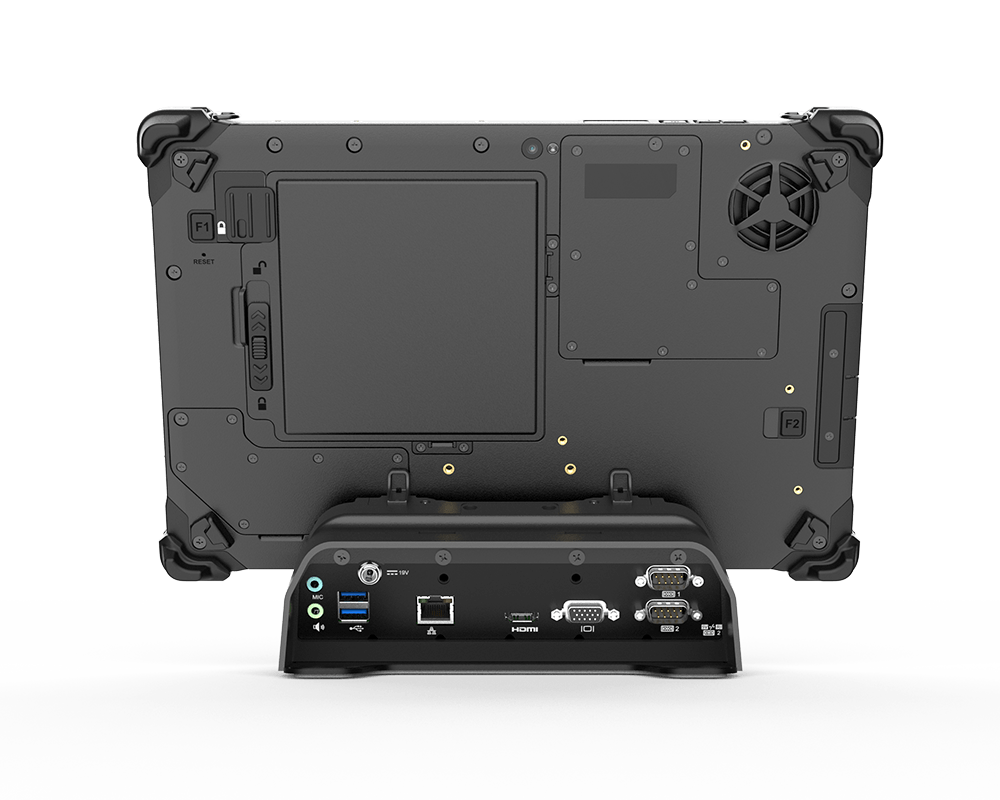

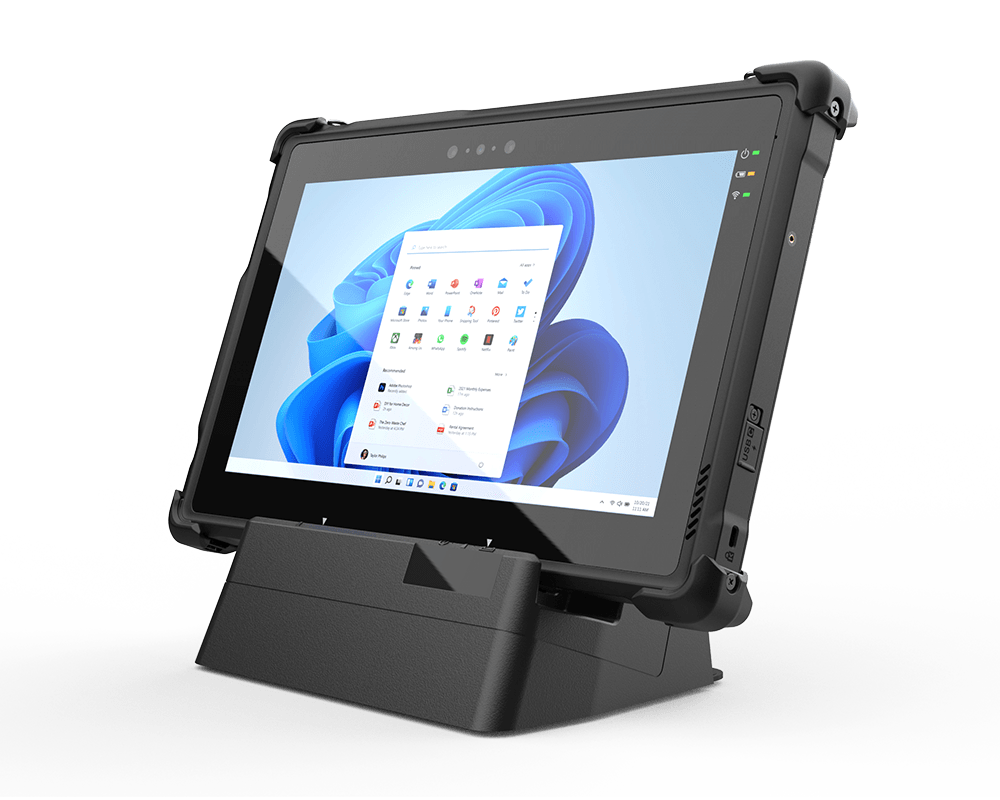

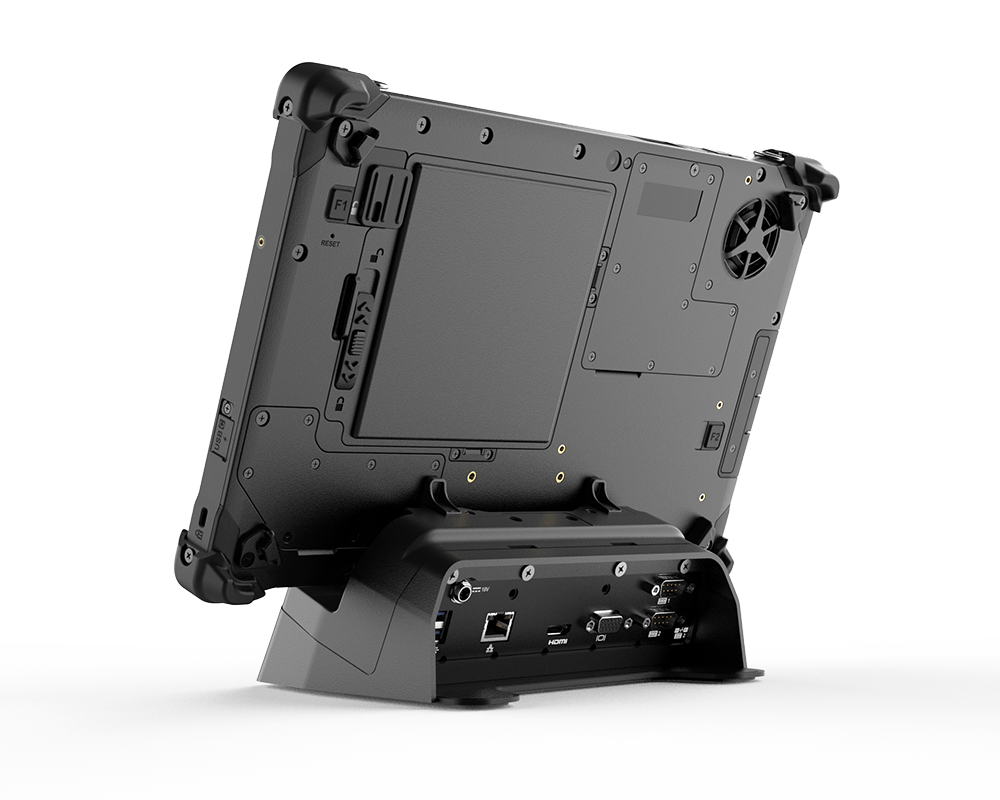

Optional Office Dock

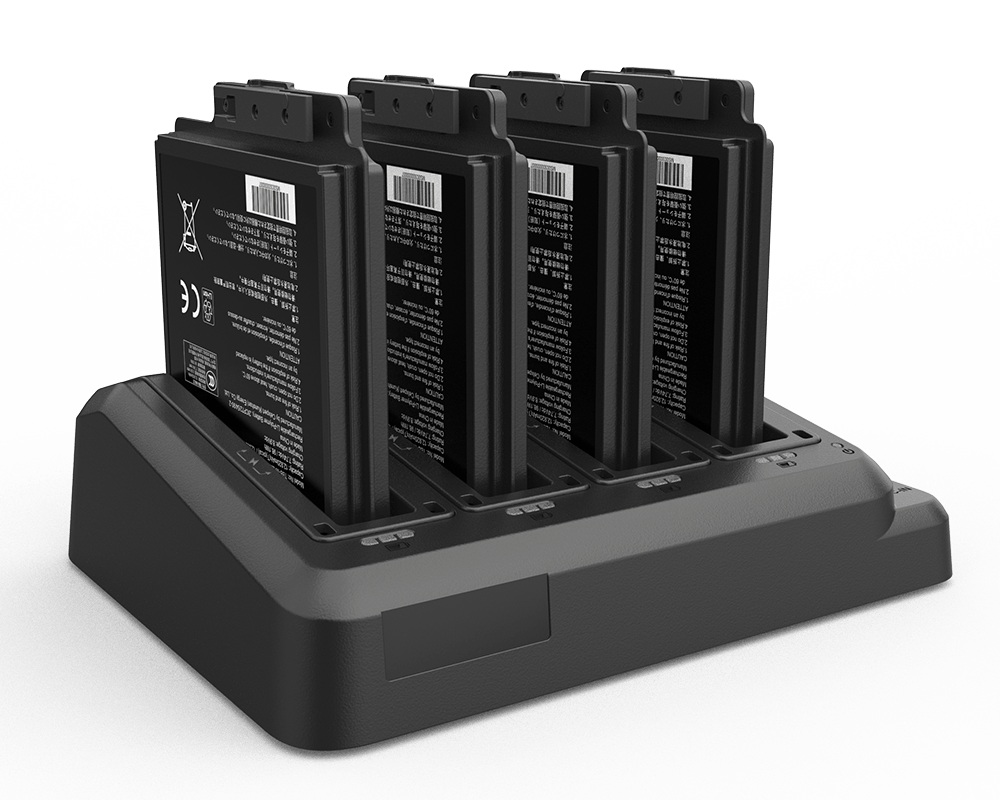

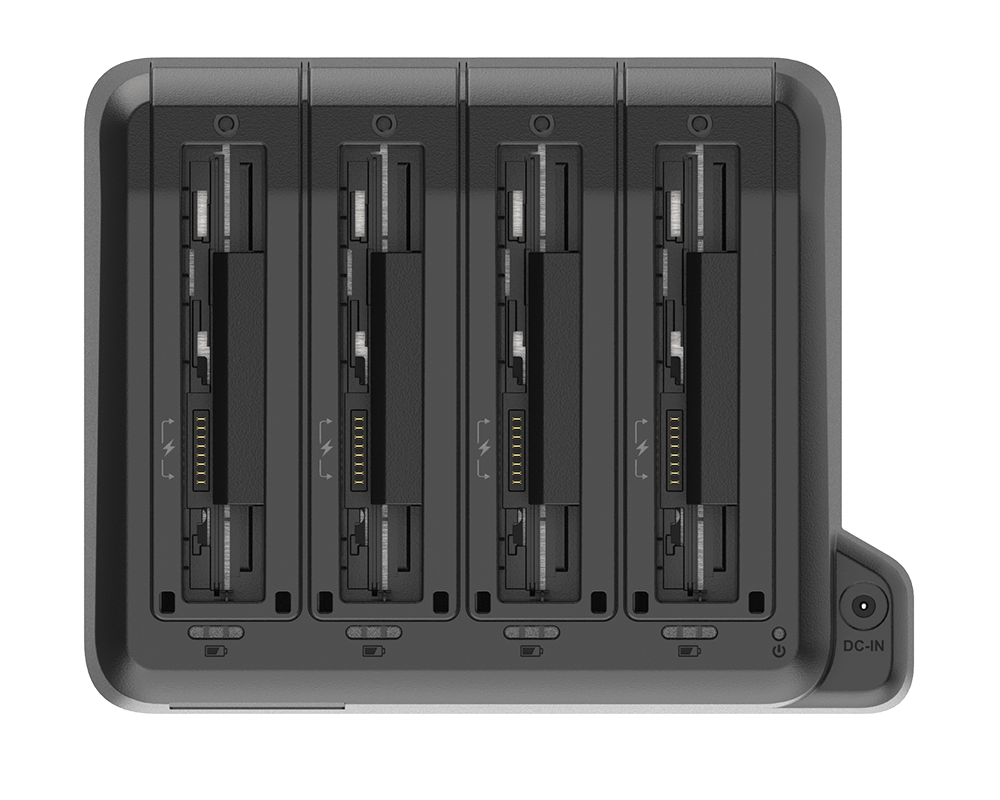

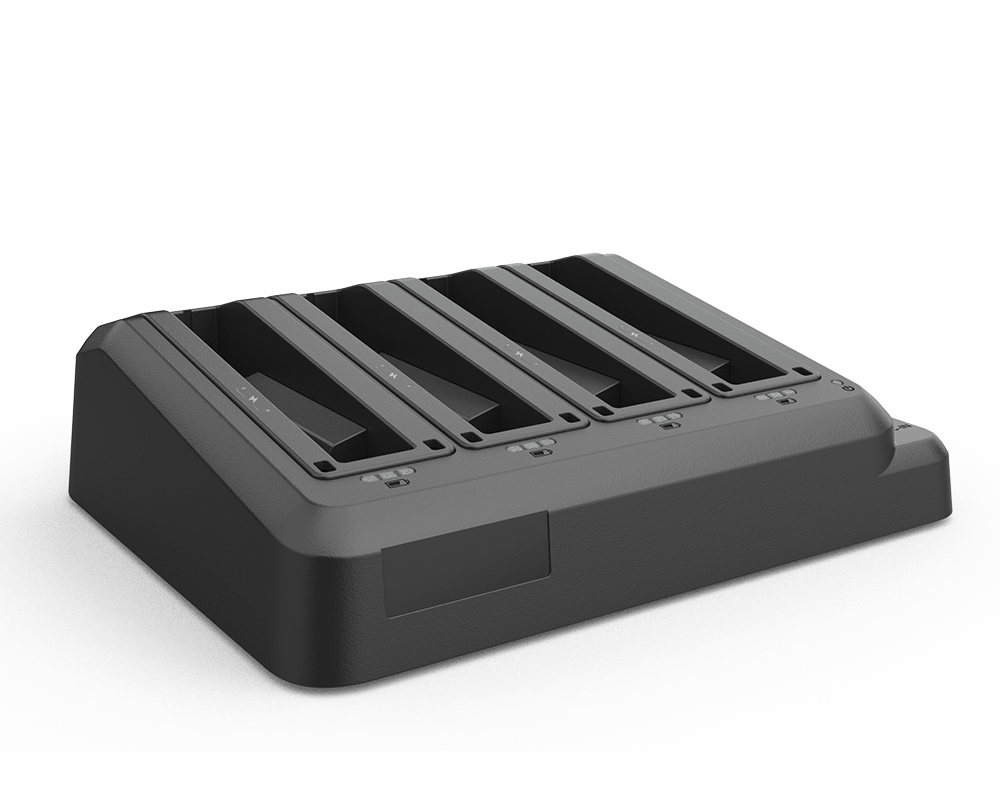

Optional Battery Charger
