NDB3
Durable 10.95" Tablet with IP67, 4 ft / 1.2 m Drop Protection and Hot-Swap Battery.
-

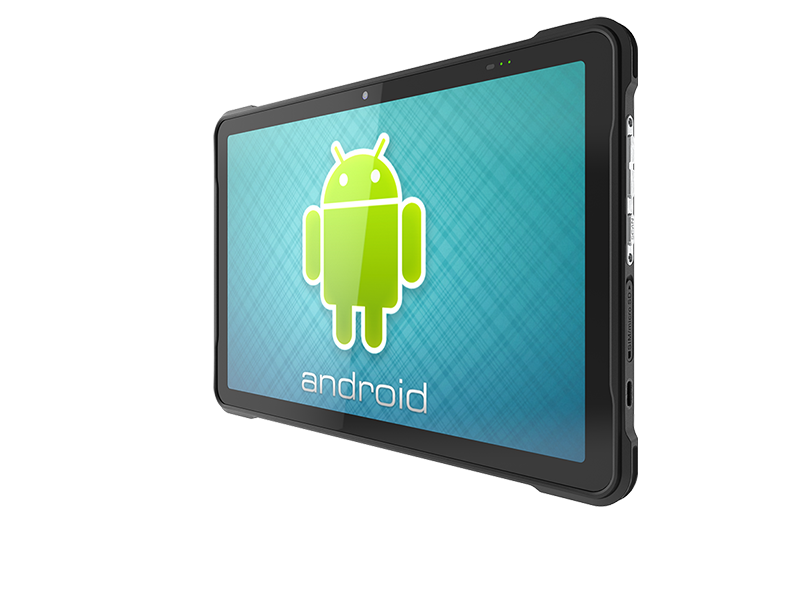

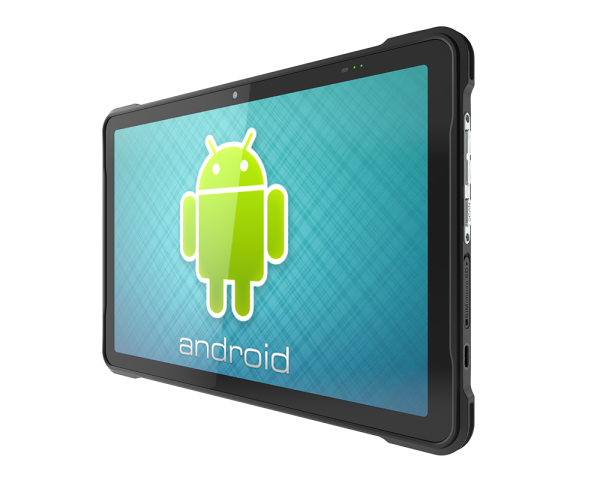

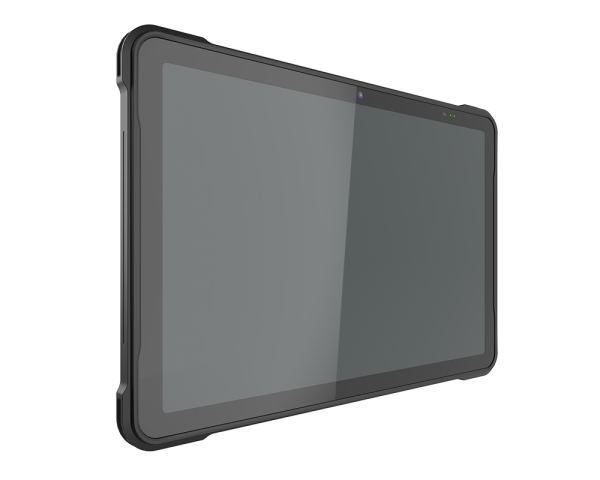

NDB3 10.95" Rugged Tablet
- 10.95" Rugged Tablet
- MIL-STD-810H tested, 4ft. / 1.2m drop proof, IP67, 1-meter tumble test.
- Powered by MediaTek MT8791 Octa-core processor with Android 15 OS.
- Sunlight readable 800 nits high brightness IPS display with Corning® Gorilla® Glass 3.
- Hot-swappable 10,000mAh (38.5Wh) high-capacity battery pack.
- Built-in 2.8 TOPS APU for AI computing applications.
- Support Wi-Fi 6, Bluetooth® 5.2, and global 4G LTE mobile broadband.
- Integrated NFC and PSAM slot for secure identification.
- 13MP Auto-Focus rear camera and 5MP front camera.
- Support GPS, GLONASS, BEIDOU, and GALILEO navigation.
- Optional 1D/2D barcode reader for data acquisition.
10.95" Rugged Tablet
Android 15
NDB3 is engineered for demanding industrial tasks. Features MIL-STD-810H certification, IP67 sealing, and 4 ft drop protection. Powered by an APU with 2.8 TOPS AI computing, Wi-Fi 6, and a 10,000mAh hot-swappable battery to ensure maximum operational uptime.
Features
-
-

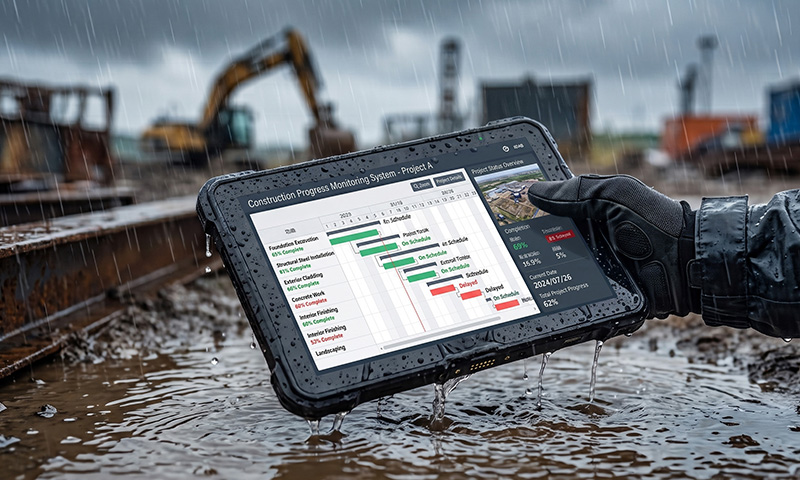

Ruggedness & IP67 Sealing
MIL-STD-810H tested and IP67 rated for superior protection. Survives 1.2m (4ft) drops and 1m tumble tests. Features Corning® Gorilla® Glass 3 for enhanced scratch and damage resistance. Operating temperature ranges from -20°C to 60°C.
-
-
AI Computing & OS Performance
Runs on the latest Android 15 operating system for enhanced security. Powered by the MediaTek MT8791 Octa-core processor, the system includes a built-in 2.8 TOPS APU for high-performance AI tasks. This dedicated AI engine is specifically optimized to handle complex edge computing and automated industrial applications.
-
-
Uninterrupted Power & Continuity
Equipped with a 10,000 mAh (38.5 Wh) hot-swappable battery pack, this device is engineered for round-the-clock operation. Featuring an integrated backup battery, it allows field workers to swap batteries seamlessly without shutting down, maximizing productivity with zero operational downtime.
-
-

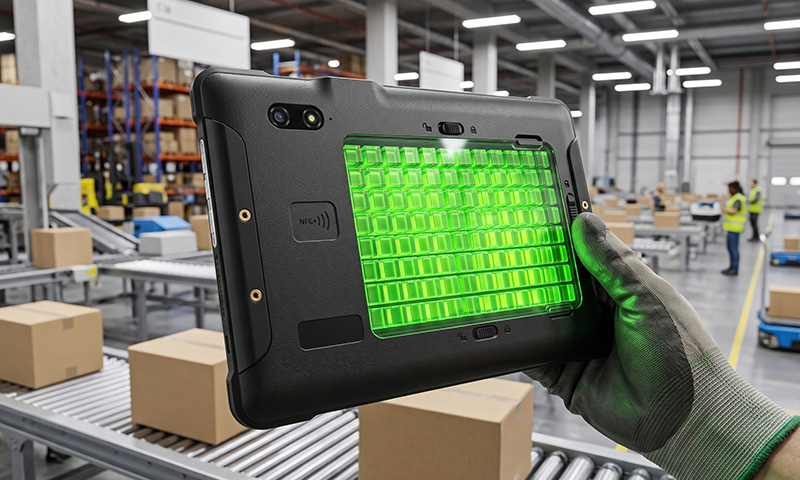

Secure Identification & Global Navigation
Hardware-level security and high-precision tracking for field operations. An integrated PSAM slot and NFC provide secure identification and encrypted transactions for professional workflows. Reliable navigation is guaranteed by a multi-system receiver supporting GPS, GLONASS, BEIDOU, and GALILEO, alongside an optional 1D/2D barcode reader.
-
-

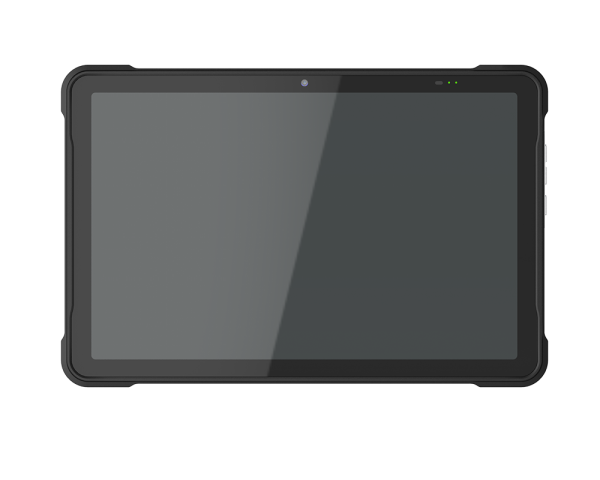

Sunlight Readable & Portable Design
800 nits high-brightness display ensures total outdoor clarity. The 10.95" IPS display is engineered for sunlight readability, making it ideal for outdoor construction and service sites. At only 13.6 mm thick and weighing approximately 825g, it offers the perfect balance of rugged protection and lightweight portability.
Specifications
- Software
- Android 15
- Durability
-
MIL-STD-810H (Multiple 4’ / 1.2m Drop)
IP67
1m tumble test
Operating temp. : -20⁰C ~60⁰C
Storage temp. : -20⁰C ~70⁰C
- CPU
- MTK8791 : 2 X A78 @2.4GHZ + 6 X A55@2.0HZ
- Storage & Memory
-
6GB (8GB Optional) LPDDR4x
128GB (258GB Optional)
- WWAN
-
Europe/Asia Version (Including Mainland China):
GSM: B2/3/5/8 (without diversity),
WCDMA: B1/2/4/5/8 (without diversity),
CDMA 1X EVDO BC0, BC1,
TDD LTE: B34/38/39/40/41(2496-2690)/42/43,
FDD LTE: B1/2/3/4/5/7/8/20/28full/66,
5G: SA N1/3/5/7/8/20/28/38/41(PC2)/66/77/78/79
(5G upon request)
US Version:
GSM: B2/3/5/8 (without diversity),
WCDMA: B1/2/4/5 (without diversity),
CDMA 1X EVDO BC0/BC1,
TDD LTE: B38/41 (2496-2690 MHz),
FDD LTE: B1/2/4/5/7/12/13/17/25/26/66/71,
5G: SA N2/5/7/12/13/25/26/29/38/41/48/66/70/71/77/78,
(5G upon request)
- Display
- 10.95", 16:10 ratio 1200x1920 IPS 800 nits Sunlight readable
- APU
- 2.8 TOPS
- Audio
-
2 x 2W Speaker
2 x Digital microphone
- Input
- Corning® Gorilla® Glass 3, 10-point multi-touch
- Cameras
-
5MP front camera, FF
13MP rear camera, AF w/ Flash
- Wireless
-
Wi-Fi 6 (802.11ax)
Bluetooth® 5.2
- Interface
-
USB 3.0 Type C x 1
SIM Slot (Dual SIM support or SIM1 + microSD)

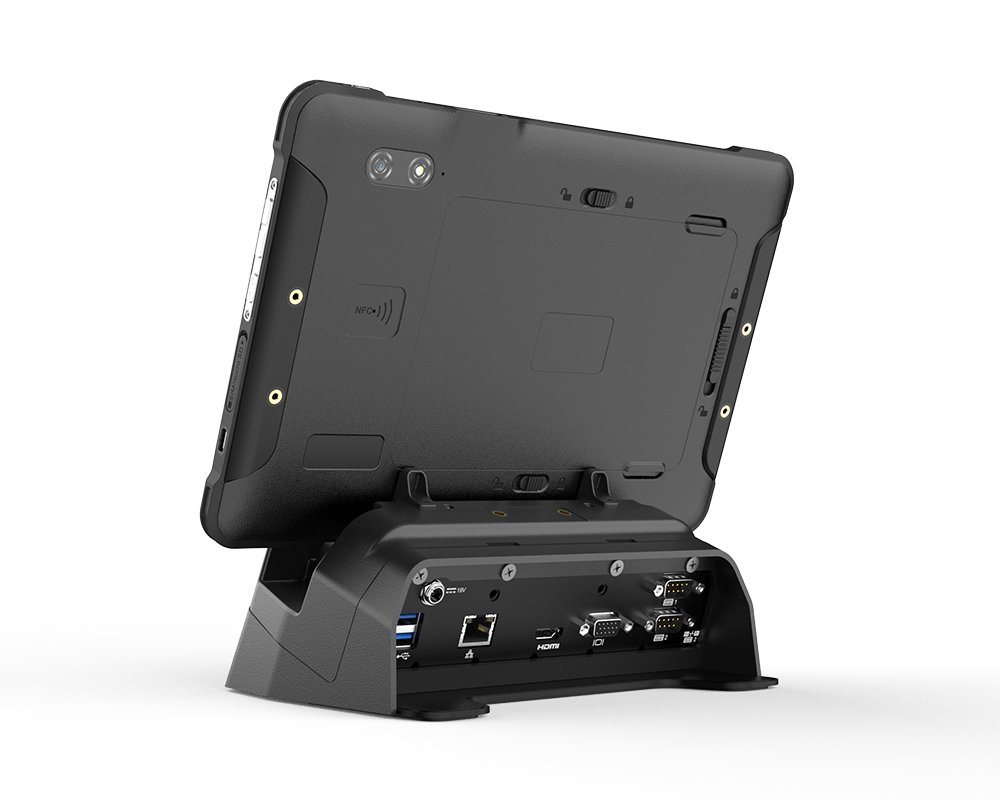

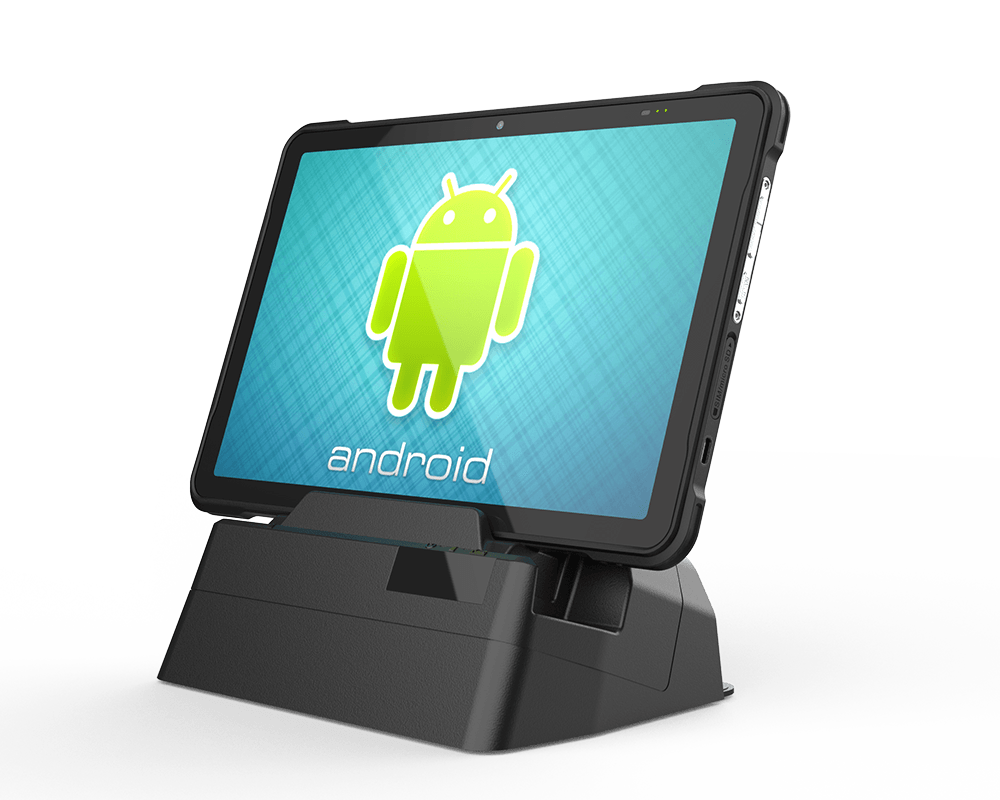

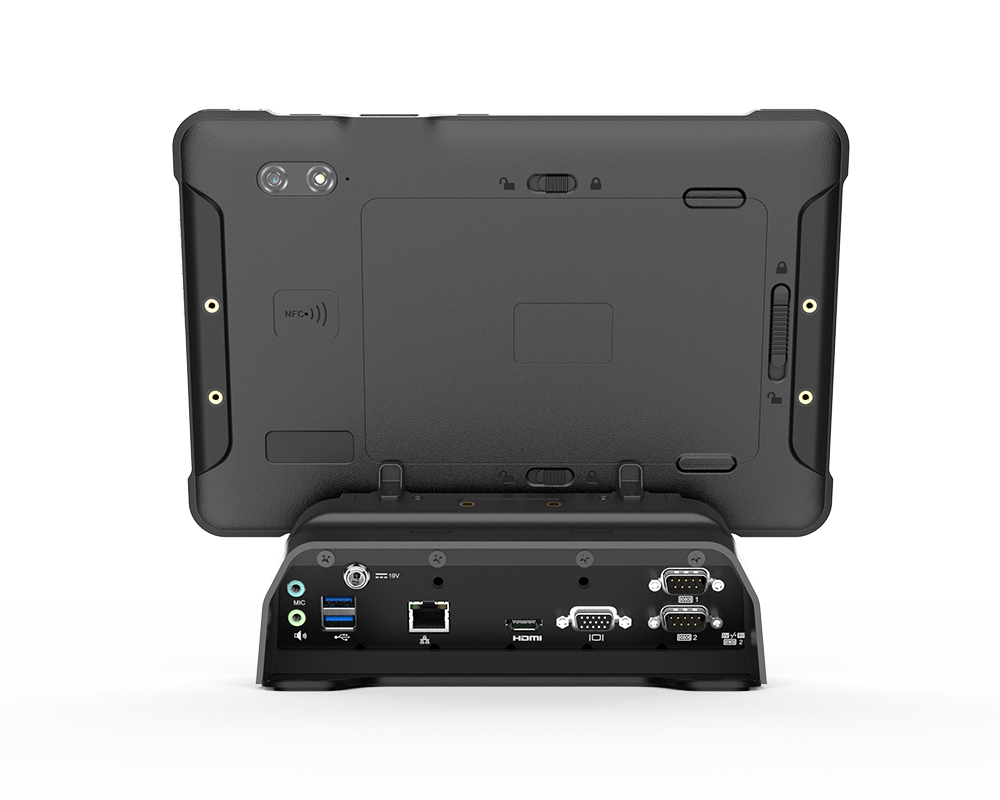

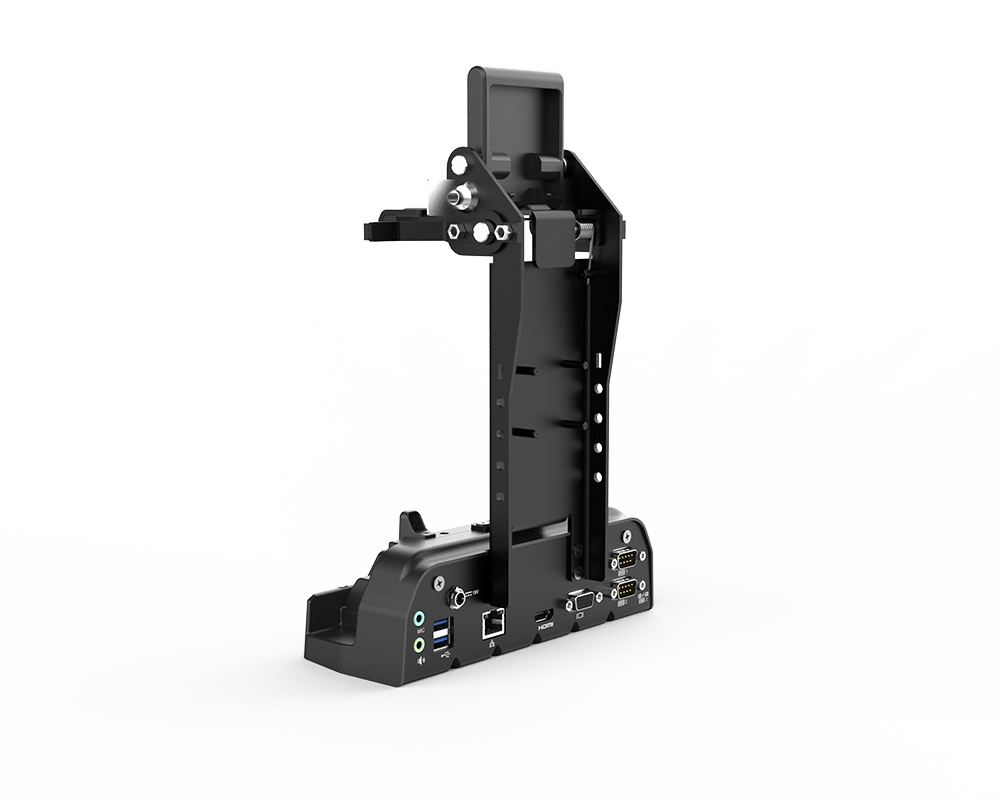

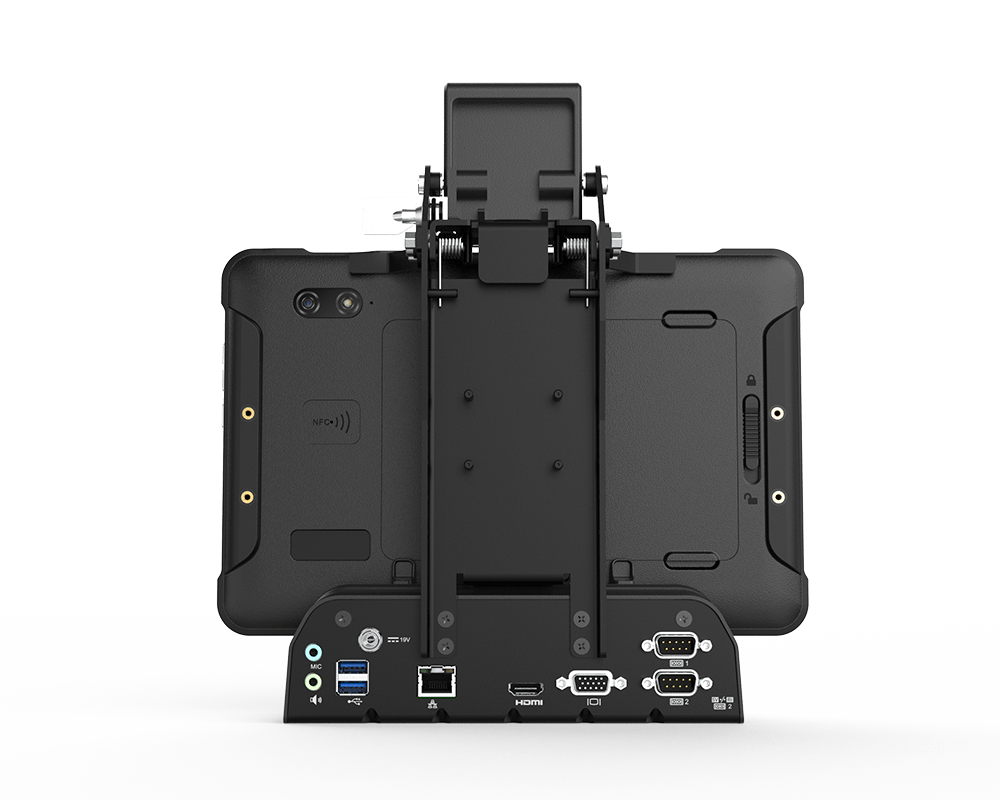

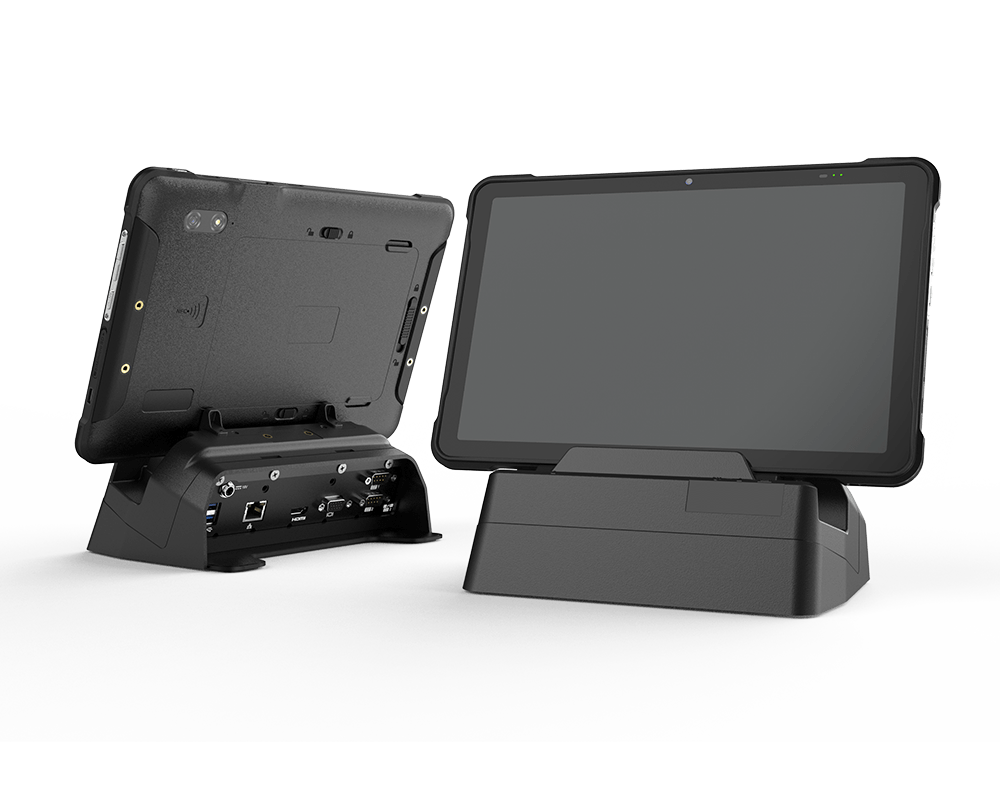

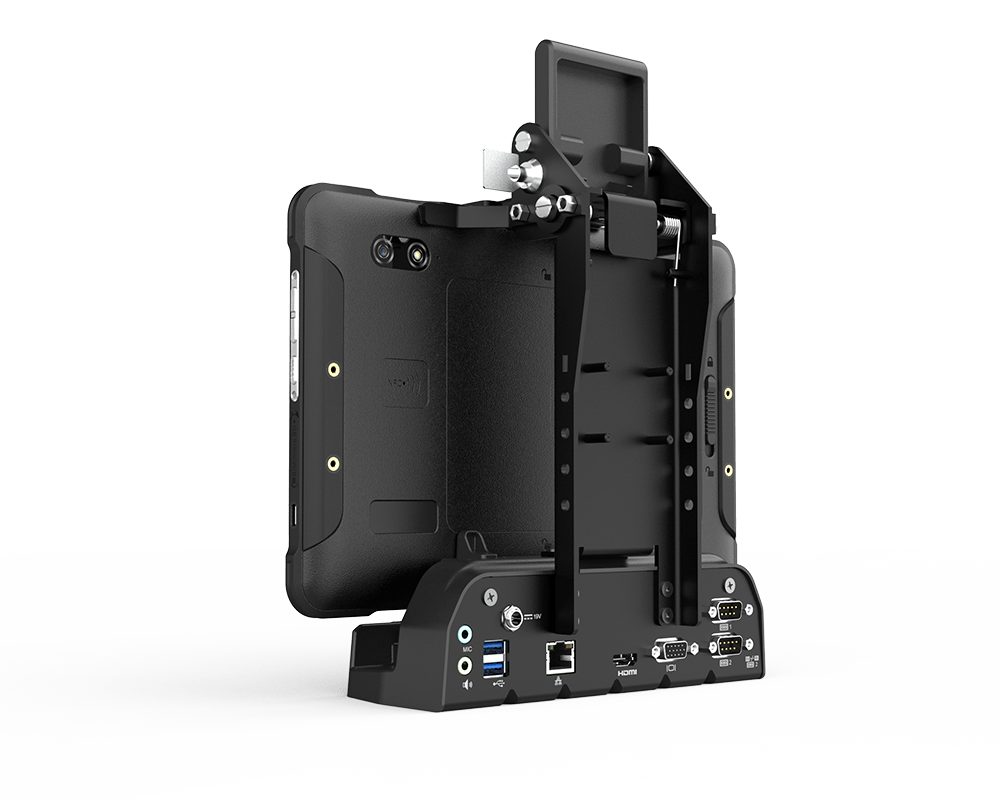

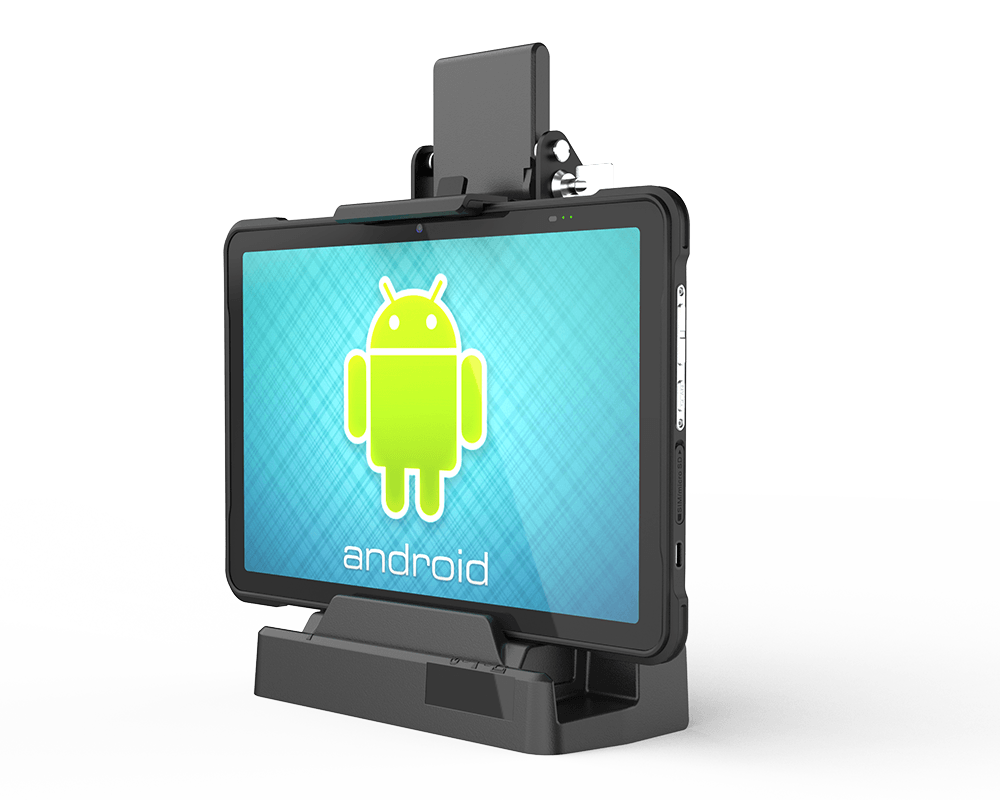

Docking connector
PSAM Slot
- Physical buttons
-
Power
Vol +
Vol -
Barcode scan button (Programmable)
- GPS
- GPS / GLONASS / BEIDOU / GALILEO
- Power Supply
-
Battery : 3.85V, 10000mAh / 38.5Wh
Hot swappable
Backup battery : 3.85V, 78mAh / 0.3Wh
Support up to 27W charging
- Security
- ISO/IEC 14443 A / 14443 B / 15693 Mifare, FeliCa
- Dimensions & Weight
- 266.5*175*13.6 mm / 825g±5g
- LED Indicators
-
Power LED
Battery LED
- Scanner
- Honeywell: N6703
